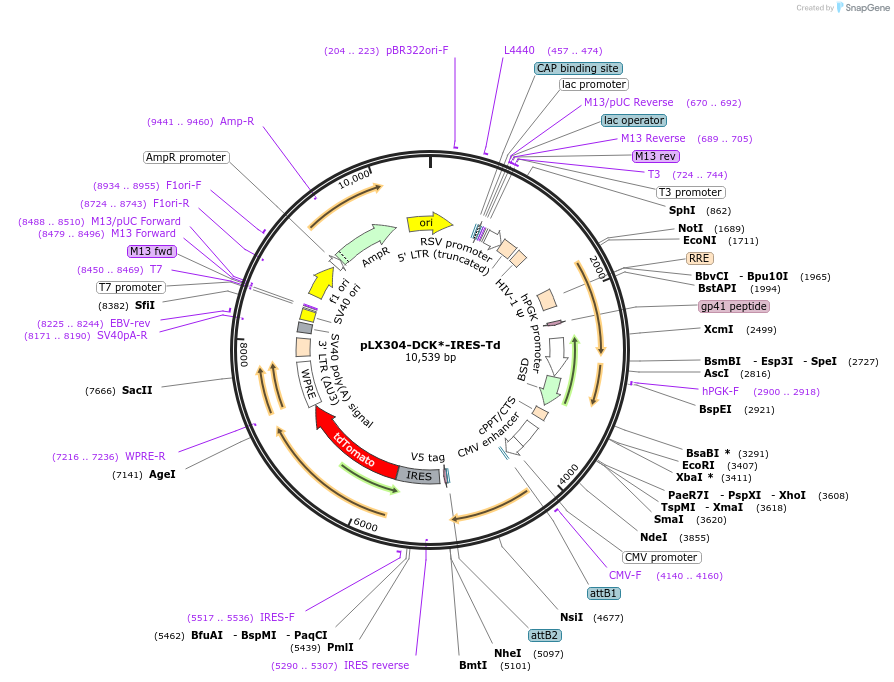

pLX304-DCK*-IRES-Td
(Plasmid #176298)

• Purpose: Expresses DCK* and TdTomato from the same transcript
• Depositing Lab: William Kaelin
• Publication: Koduri et al Sci Adv. 2021 Feb 5;7(6). pii: 7/6/eabd6263. doi: 10.1126/sciadv.abd6263. Print 2021 Feb.

Backbone

• Vector backbone: pLX304
• Backbone manufacturer: None
• Backbone size w/o insert (bp): 10000
• Modifications to backbone: an IRES-TdTomato cassette was sub cloned into the NheI-AgeI site
• Vector type: Mammalian Expression, Lentiviral
• Selectable markers: Blasticidin

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): NEB Stable
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: Mutant Deoxycytidine Kinase (DCK*, S74E R104M D133A)
• Species: H. sapiens (human)
• Insert Size (bp): 778
• Mutation: S74E R104M D133A
• GenBank ID: NM_000788.3
• Entrez Gene: DCK
• Promoter: CMV
• Tag / Fusion Protein:
  • V5 (C terminal on backbone)

Cloning Information

• Cloning method: Gateway Cloning
• 5′ sequencing primer: CMVfor
• 3′ sequencing primer: attB rev

Resource Information

• Supplemental Documents:
  • pLX304-DCK*-IRES-Tdtomato.gb
• Addgene Notes:
  • Addgene Diagnostic Digest
• A portion of this plasmid was derived from a plasmid made by: DCK* gene was the kind gift of the Medin Lab

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Takara Bio Limited Use Label License (formerly Clontech)
• Industry Terms:
  • Not Available to Industry
