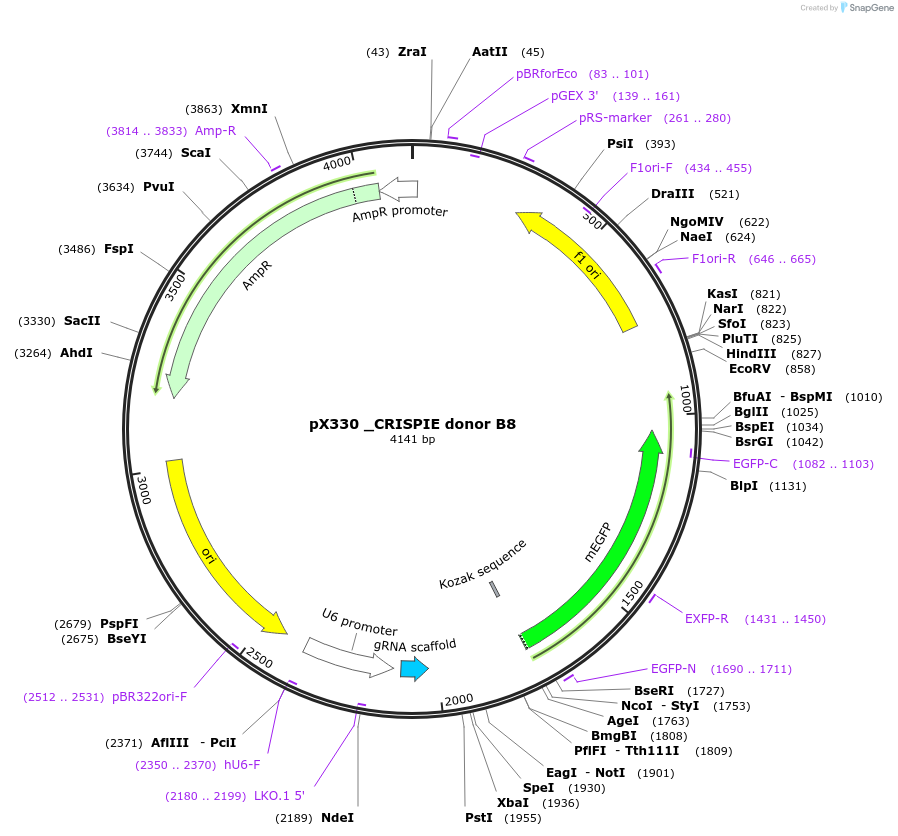

pX330 _CRISPIE donor B8
(Plasmid
#172849)
-
PurposeDRS-2 sgRNA expression under a U6 promotor and CRISPIE donor B8 (Zhong et al, eLife 2021), mEGFP translational phase (1-1), excised by DRS-1 or DRS-2 sgRNA (with SpCas9).
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 172849 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepX330
- Backbone size w/o insert (bp) 8484
- Total vector size (bp) 4140
-
Vector typeMammalian Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameDRS-2 sgRNA and CRISPIE designer exon (phase 1-1) encoding mEGFP
Resource Information
-
Supplemental Documents
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pX330 _CRISPIE donor B8 was a gift from Haining Zhong (Addgene plasmid # 172849 ; http://n2t.net/addgene:172849 ; RRID:Addgene_172849) -
For your References section:
High-fidelity, efficient, and reversible labeling of endogenous proteins using CRISPR-based designer exon insertion. Zhong H, Ceballos CC, Massengill CI, Muniak MA, Ma L, Qin M, Petrie SK, Mao T. Elife. 2021 Jun 8;10. pii: 64911. doi: 10.7554/eLife.64911. 10.7554/eLife.64911 PubMed 34100715
