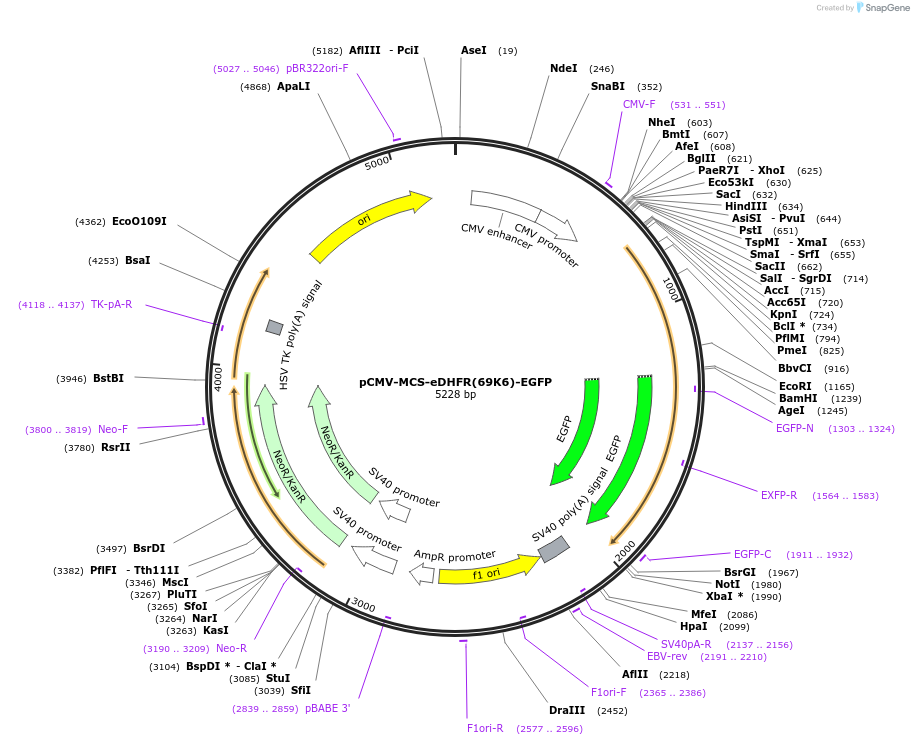

pCMV-MCS-eDHFR(69K6)-EGFP
(Plasmid #172101)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 172101 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pEGFP-N1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 4695
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    22aa-eDHFR(69K6)-EGFP
  • Species
    Synthetic
  • Insert Size (bp)
    605
  • Mutation
    eDHFR(69K6): Hexalysine (K6) sequence is inserted between Asp69 and Asp70 of E. coli DHFR
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer unknown
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

The chemical mDcTMP, to control protein translocation, can be obtained from Funakoshi Co., Ltd. https://www.funakoshi.co.jp/exports_contents/95015. Please visit https://www.biorxiv.org/content/10.1101/2021.03.16.435568v1 for bioRxiv preprint.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCMV-MCS-eDHFR(69K6)-EGFP was a gift from Shinya Tsukiji (Addgene plasmid # 172101 ; http://n2t.net/addgene:172101 ; RRID:Addgene_172101)

  • For your References section:

    A chemogenetic platform for controlling plasma membrane signaling and synthetic signal oscillation. Suzuki S, Nakamura A, Hatano Y, Yoshikawa M, Yoshii T, Sawada S, Atsuta-Tsunoda K, Aoki K, Tsukiji S. Cell Chem Biol. 2022 Sep 15;29(9):1446-1464.e10. doi: 10.1016/j.chembiol.2022.06.005. Epub 2022 Jul 13. 10.1016/j.chembiol.2022.06.005 PubMed 35835118
