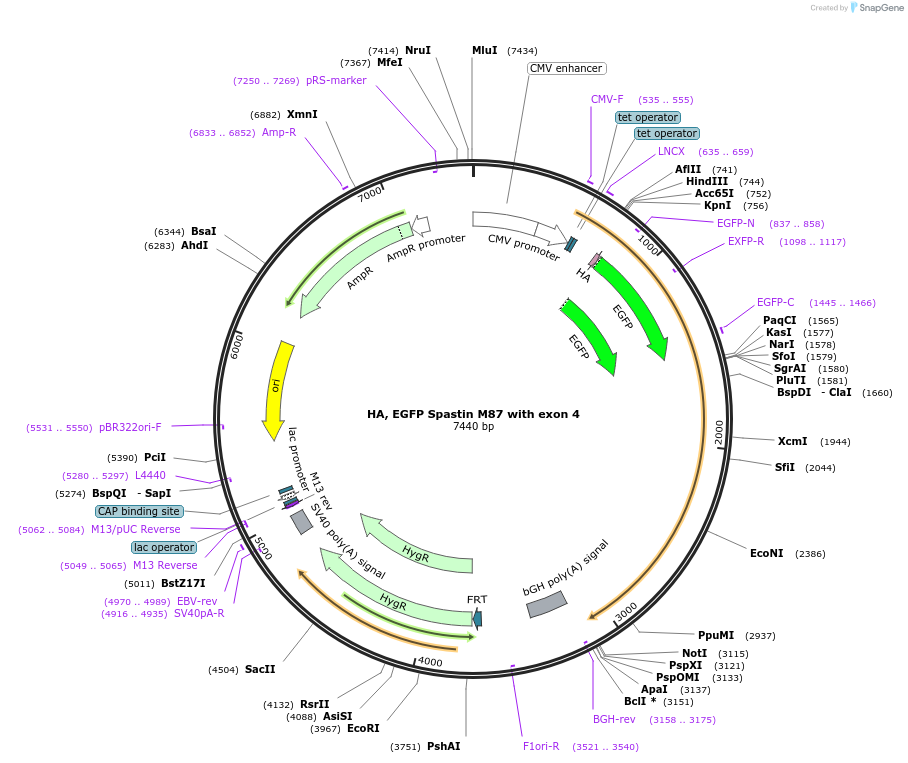

HA, EGFP Spastin M87 with exon 4
(Plasmid #167542)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 167542 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA5/FRT/TO
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5137
  • Total vector size (bp) 7440
  • Vector type
    Mammalian Expression
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Spastin M87 with exon 4
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    1593
  • GenBank ID
    NM_014946.3
  • Entrez Gene
    SPAST (a.k.a. ADPSP, FSP2, SPG4)
  • Promoter CMV
  • Tags / Fusion Proteins
    • HA tag (N terminal on insert)
    • EGFP (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site HindIII (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
  • 3′ sequencing primer TAGAAGGCACAGTCGAGG
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    HA, EGFP Spastin M87 with exon 4 was a gift from Tarun Kapoor (Addgene plasmid # 167542 ; http://n2t.net/addgene:167542 ; RRID:Addgene_167542)

  • For your References section:

    Designing a chemical inhibitor for the AAA protein spastin using active site mutations. Cupido T, Pisa R, Kelley ME, Kapoor TM. Nat Chem Biol. 2019 May;15(5):444-452. doi: 10.1038/s41589-019-0225-6. Epub 2019 Feb 18. 10.1038/s41589-019-0225-6 PubMed 30778202
