Addgene

Red Glifon Nega
(Plasmid #163117)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 163117 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

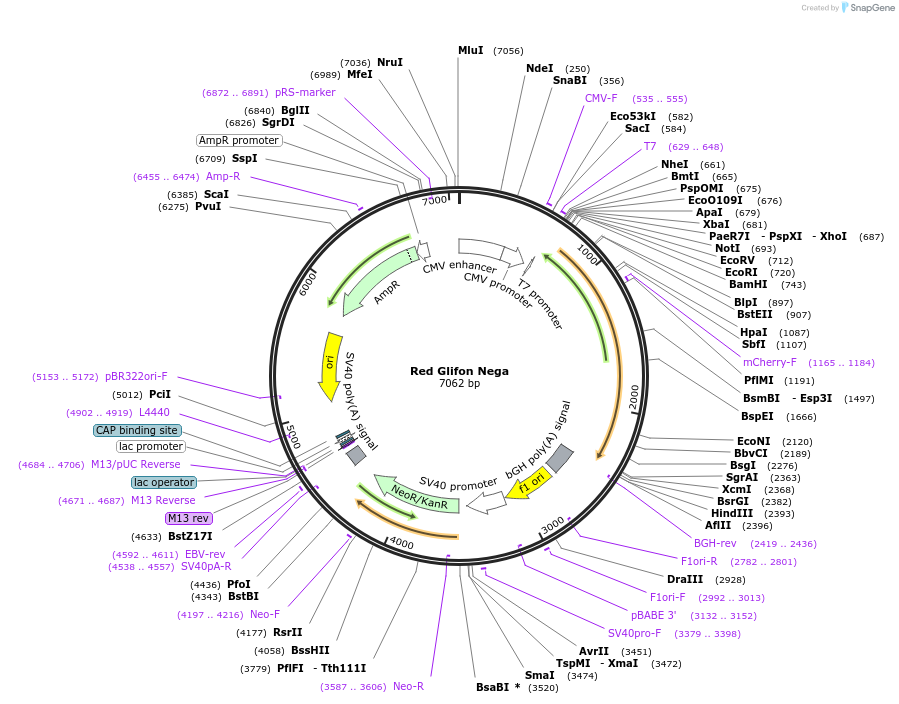

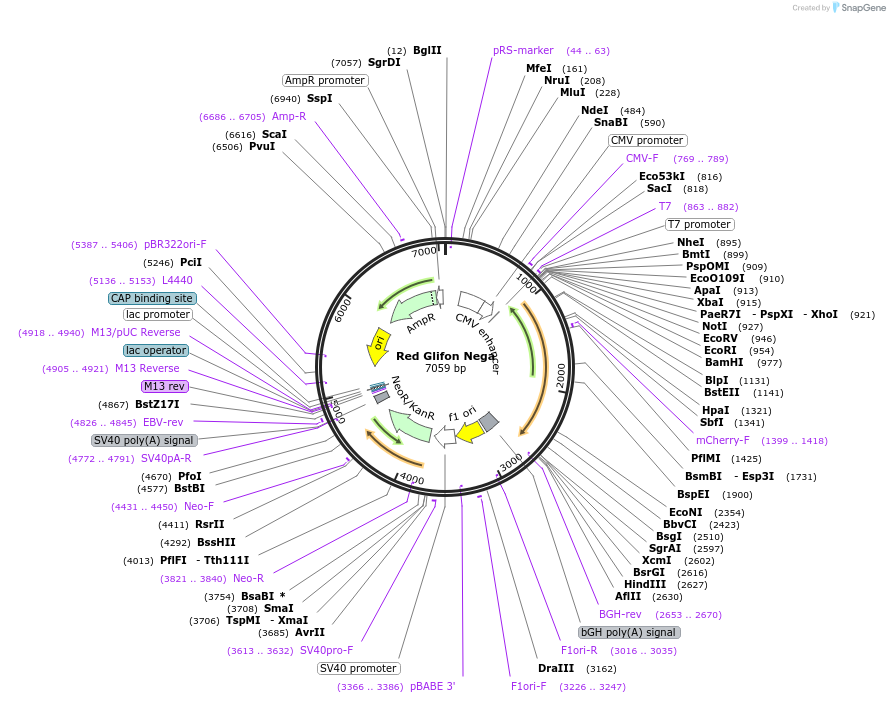

Backbone

  • Vector backbone
    pcDNA3.1(-)
  • Backbone size w/o insert (bp) 5400
  • Total vector size (bp) 7044
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Red Glifon Nega
  • Species
    Synthetic
  • Insert Size (bp)
    1644
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamHI (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer CMV Forward
  • 3′ sequencing primer BGH Reverse
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    Red Glifon Nega was a gift from Takashi Tsuboi (Addgene plasmid # 163117 ; http://n2t.net/addgene:163117 ; RRID:Addgene_163117)

  • For your References section:

    Development of red genetically encoded biosensor for visualization of intracellular glucose dynamics. Mita M, Sugawara I, Harada K, Ito M, Takizawa M, Ishida K, Ueda H, Kitaguchi T, Tsuboi T. Cell Chem Biol. 2021 Jun 29. pii: S2451-9456(21)00301-9. doi: 10.1016/j.chembiol.2021.06.002. 10.1016/j.chembiol.2021.06.002 PubMed 34197723
