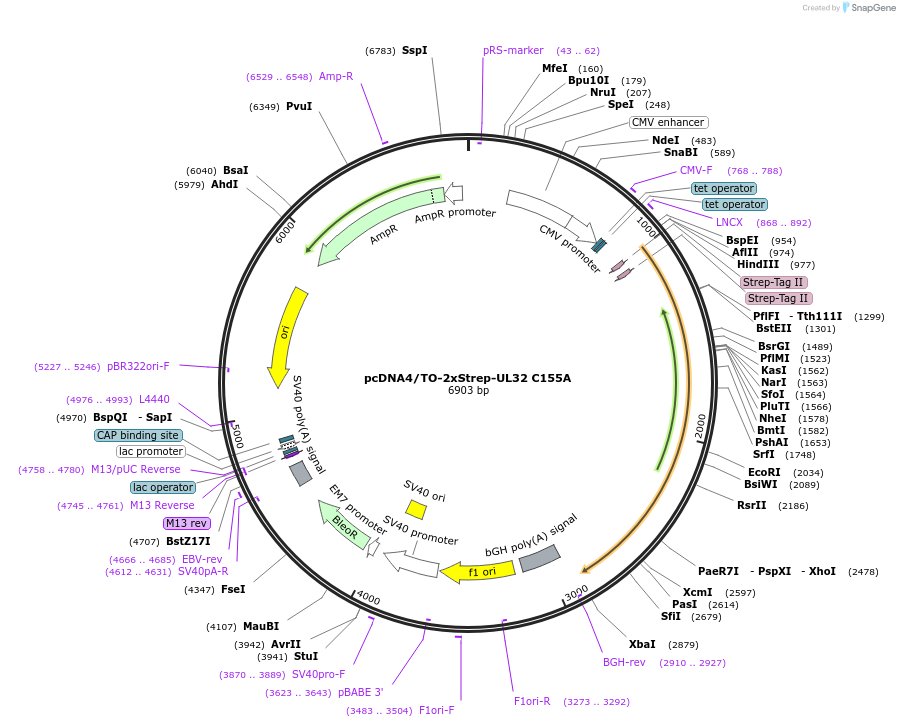

pcDNA4/TO-2xStrep-UL32 C155A
(Plasmid #162649)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 162649 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA4/TO
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 5108
  • Total vector size (bp) 6899
  • Vector type
    Mammalian Expression
  • Selectable markers
    Zeocin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    UL32
  • Species
    HSV-1
  • Insert Size (bp)
    1791
  • Mutation
    Amino acid C155 mutated to alanine
  • Promoter CMV
  • Tag / Fusion Protein
    • N-terminal 2xStrep-Tag II (N terminal on backbone)

Cloning Information

  • Cloning method Ligation Independent Cloning
  • 5′ sequencing primer CGCAAATGGGCGGTAGGCGTG
  • 3′ sequencing primer ACAGTGGGAGTGGCACCTT
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA4/TO-2xStrep-UL32 C155A was a gift from Britt Glaunsinger (Addgene plasmid # 162649 ; http://n2t.net/addgene:162649 ; RRID:Addgene_162649)

  • For your References section:

    A pentameric protein ring with novel architecture is required for herpesviral packaging. Didychuk AL, Gates SN, Gardner MR, Strong LM, Martin A, Glaunsinger BA. Elife. 2021 Feb 8;10. pii: 62261. doi: 10.7554/eLife.62261. 10.7554/eLife.62261 PubMed 33554858
