Purpose(Empty Backbone) Entry vector for gRNA insertion in plant prime editing expression vector
-
Depositing Lab
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 162466 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepCR8
-
Backbone manufacturerThermoFisher
- Backbone size (bp) 2817
-
Vector typeentry vector for gRNA
- Promoter CmYLCV
Growth in Bacteria
-
Bacterial Resistance(s)Spectinomycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer M13 forward
- 3′ sequencing primer T7 (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
promoter and other sequence data from Cermak 2017 paper.
A Multipurpose Toolkit to Enable Advanced Genome Engineering in Plants. Cermak, T.
Curtin, S. J., Gil-Humanes, J., Cegan, R., Kono, T. J. Y., Konecna, E., Belanto, J. J., Starker, C. G., Mathre, J. W., Greenstein, R. L., Voytas, D. F. Plant Cell. 2017; 29(6):1196-1217.
Please visit https://www.biorxiv.org/content/10.1101/2020.07.16.206276v1 for bioRxiv preprint.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pPEG was a gift from Adam Bogdanove (Addgene plasmid # 162466 ; http://n2t.net/addgene:162466 ; RRID:Addgene_162466) -
For your References section:
Spelling Changes and Fluorescent Tagging With Prime Editing Vectors for Plants. Wang L, Kaya HB, Zhang N, Rai R, Willmann MR, Carpenter SCD, Read AC, Martin F, Fei Z, Leach JE, Martin GB, Bogdanove AJ. Front Genome Ed. 2021 Mar 4;3:617553. doi: 10.3389/fgeed.2021.617553. eCollection 2021. 10.3389/fgeed.2021.617553 PubMed 34713247

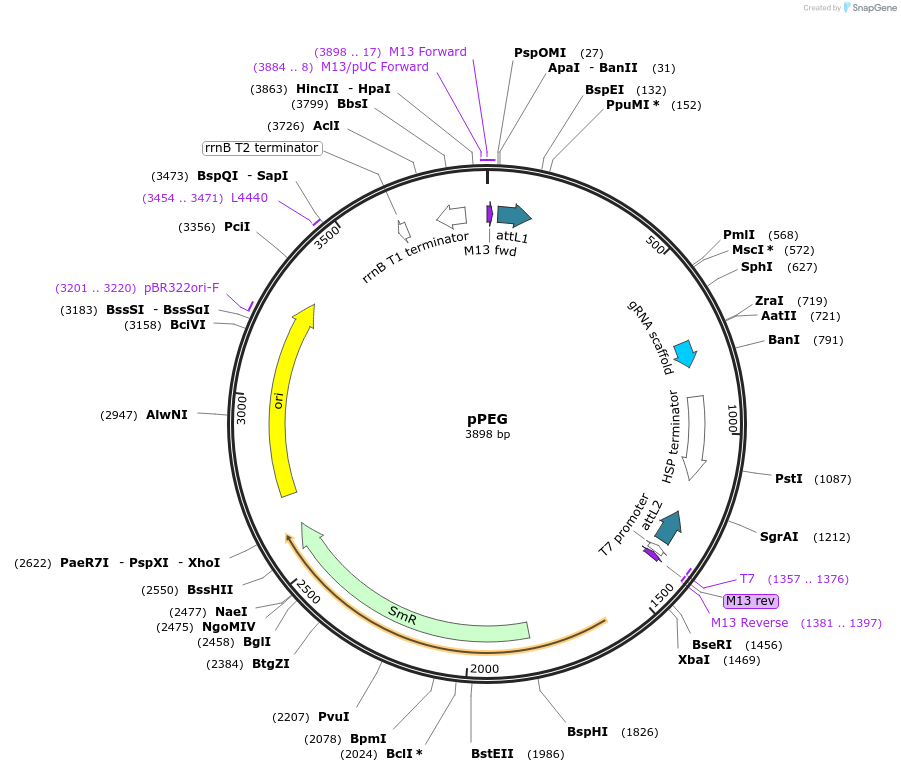

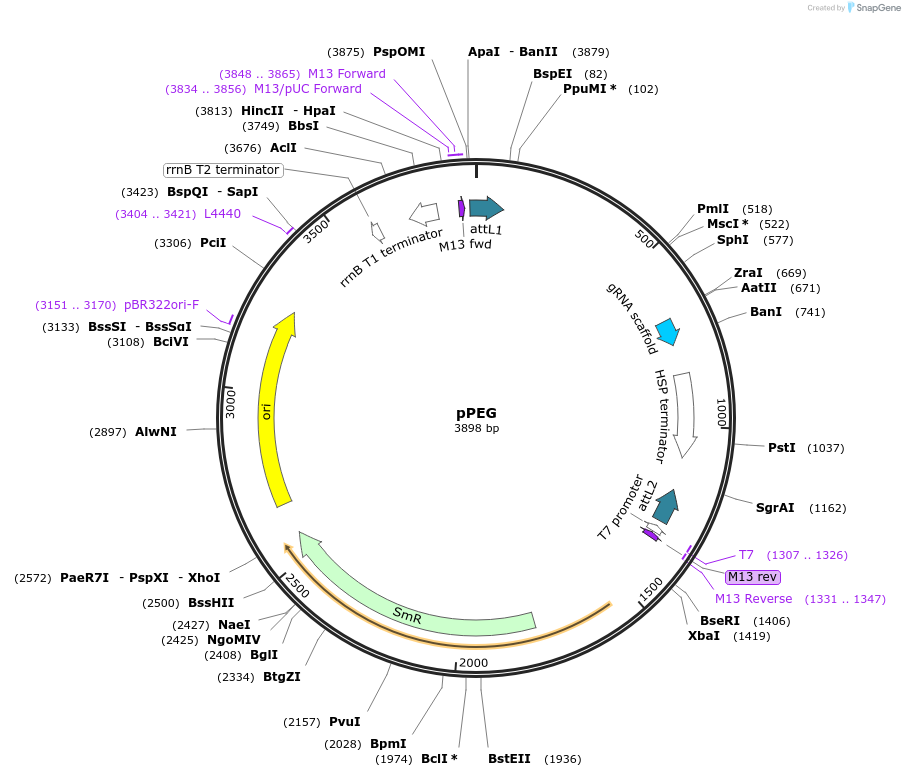

Map uploaded by the depositor.
