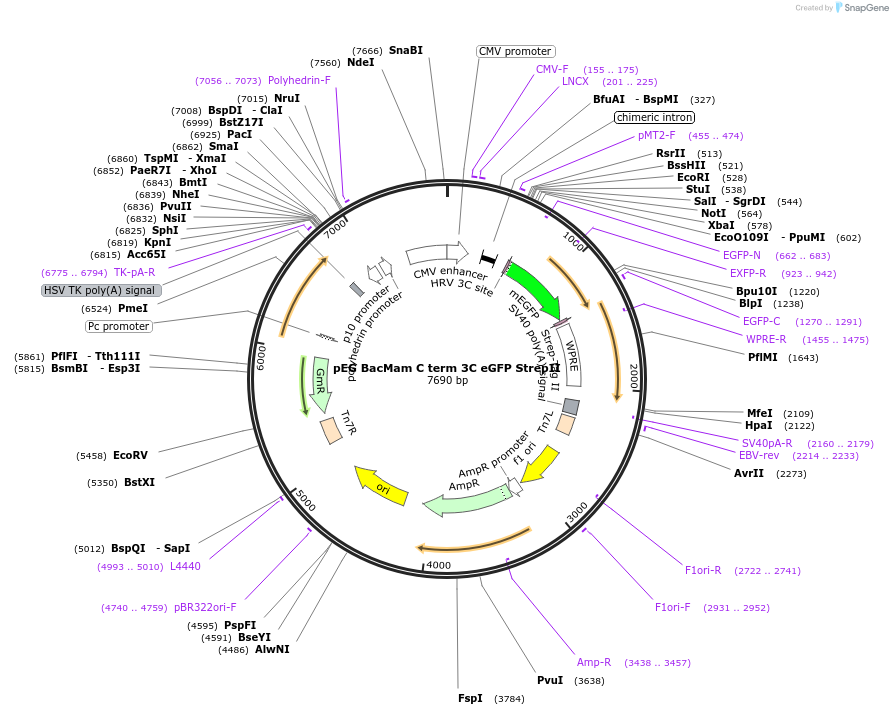

pEG BacMam C term 3C eGFP StrepII
(Plasmid #160686)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 160686 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pEG BacMam
  • Modifications to backbone
    pEG BacMam C terminus tagged with 3C eGFP StrepII
  • Vector type
    Mammalian Expression
  • Promoter CMV
  • Tag / Fusion Protein
    • 3C eGFP StrepII (C terminal on backbone)

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pEG BacMam C term 3C eGFP StrepII was a gift from Eric Gouaux (Addgene plasmid # 160686 ; http://n2t.net/addgene:160686 ; RRID:Addgene_160686)

  • For your References section:

    Screening and large-scale expression of membrane proteins in mammalian cells for structural studies. Goehring A, Lee CH, Wang KH, Michel JC, Claxton DP, Baconguis I, Althoff T, Fischer S, Garcia KC, Gouaux E. Nat Protoc. 2014 Nov;9(11):2574-85. doi: 10.1038/nprot.2014.173. Epub 2014 Oct 9. 10.1038/nprot.2014.173 PubMed 25299155
