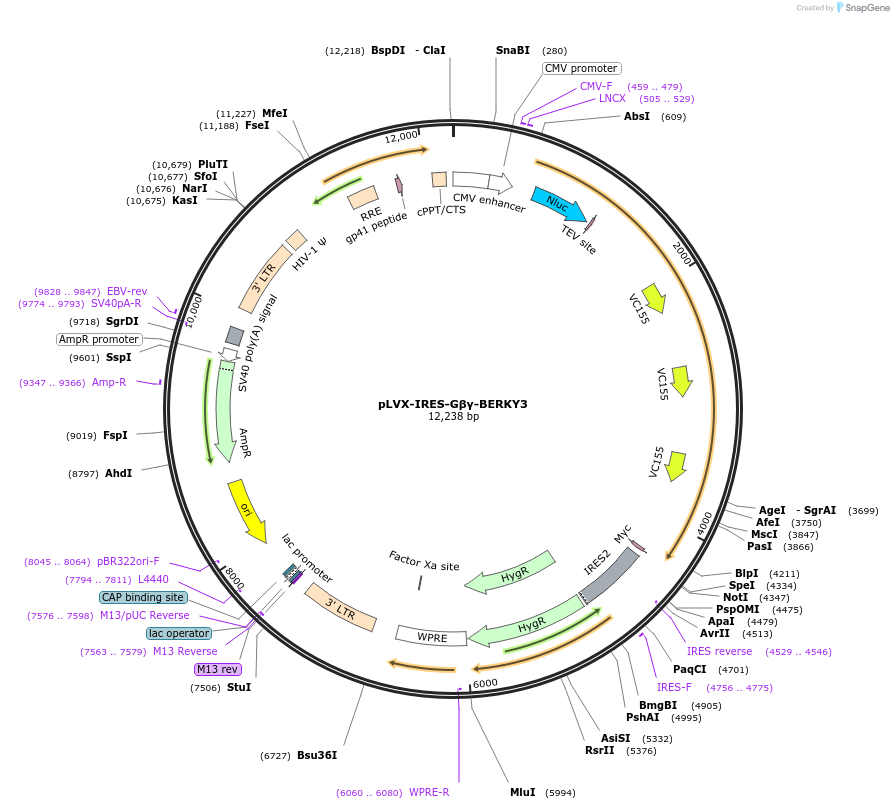

pLVX-IRES-Gβγ-BERKY3
(Plasmid #158426)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 158426 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pLVX-IRES-Hyg
  • Backbone size w/o insert (bp) 8519
  • Total vector size (bp) 12220
  • Vector type
    Lentiviral
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Lyn11-Nluc-ER/K linker-3xYFP-GRK3ct
  • Alt name
    Gβγ*-BERKY3
  • Insert Size (bp)
    3701
  • Promoter CMV

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site XhoI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer CMV-F
    • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLVX-IRES-Gβγ-BERKY3 was a gift from Mikel Garcia-Marcos (Addgene plasmid # 158426 ; http://n2t.net/addgene:158426 ; RRID:Addgene_158426)

  • For your References section:

    Revealing the Activity of Trimeric G-proteins in Live Cells with a Versatile Biosensor Design. Maziarz M, Park JC, Leyme A, Marivin A, Garcia-Lopez A, Patel PP, Garcia-Marcos M. Cell. 2020 Jun 27. pii: S0092-8674(20)30752-2. doi: 10.1016/j.cell.2020.06.020. 10.1016/j.cell.2020.06.020 PubMed 32634377
