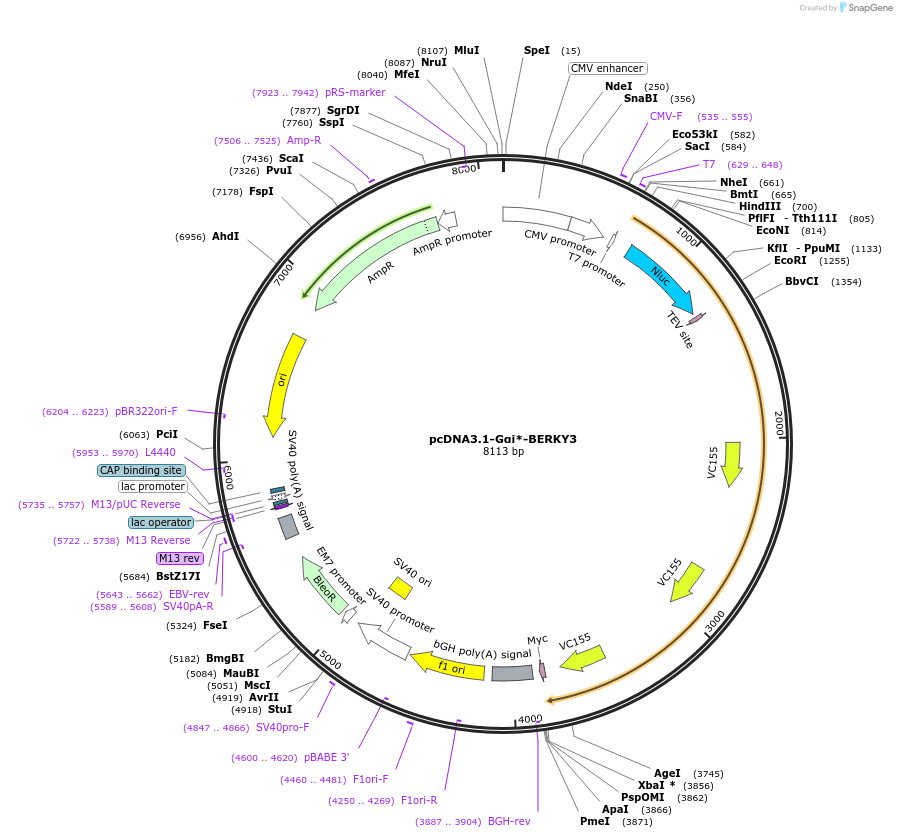

pcDNA3.1-Gαi*-BERKY3
(Plasmid #158198)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 158198 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pcDNA3.1(+)
  • Backbone size w/o insert (bp) 5428
  • Total vector size (bp) 8617
  • Vector type
    Mammalian Expression
  • Selectable markers
    Zeocin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Lyn11-Nluc-ER/K linker-3xYFP-KB1753-myc
  • Alt name
    Gαi*-BERKY3
  • Insert Size (bp)
    3189
  • Promoter CMV
  • Tag / Fusion Protein
    • myc (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Nhel (not destroyed)
  • 3′ cloning site Xbal (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer BGH-rev
    • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pcDNA3.1-Gαi*-BERKY3 was a gift from Mikel Garcia-Marcos (Addgene plasmid # 158198 ; http://n2t.net/addgene:158198 ; RRID:Addgene_158198)

  • For your References section:

    Revealing the Activity of Trimeric G-proteins in Live Cells with a Versatile Biosensor Design. Maziarz M, Park JC, Leyme A, Marivin A, Garcia-Lopez A, Patel PP, Garcia-Marcos M. Cell. 2020 Jun 27. pii: S0092-8674(20)30752-2. doi: 10.1016/j.cell.2020.06.020. 10.1016/j.cell.2020.06.020 PubMed 32634377
