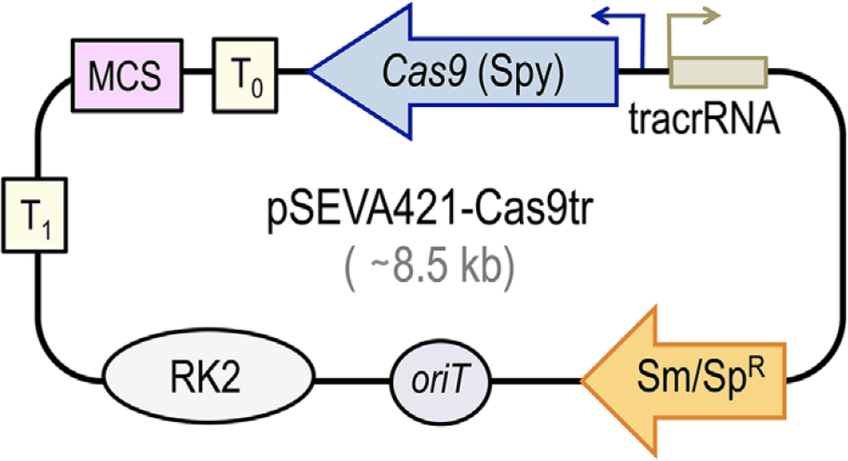

pSEVA421-Cas9tr
(Plasmid #138709)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 138709 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pSEVA421
  • Backbone manufacturer
    Standard European Vector Architecture
  • Backbone size w/o insert (bp) 3882
  • Total vector size (bp) 8506
  • Modifications to backbone
    tracrRNA-Cas9 was PCR amplified from pCas9 (Jiang et al, Nat Biotechnol 2013, 31, 233-239) and the 4.7 Kb fragment was cloned by Gibson Assembly in pSEVA421 restricted with SanDI/SwaI
  • Vector type
    Bacterial Expression, CRISPR, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Spectinomycin and Streptomycin, 50 & 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    tracrRNA-Cas9
  • Species
    Streptococcus pyogenes
  • Insert Size (bp)
    4644

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer gaacgctcggttgccgc
  • 3′ sequencing primer ctgcgtaacatcgttgctgctcca
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Aparicio T, de Lorenzo V, Martínez-García E (2018) CRISPR/Cas9-based counterselection boosts recombineering efficiency in Pseudomonas putida. Biotechnol J 13(5):1700161
  • Article Citing this Plasmid

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pSEVA421-Cas9tr was a gift from Víctor de Lorenzo (Addgene plasmid # 138709 ; http://n2t.net/addgene:138709 ; RRID:Addgene_138709)
  • For your References section:

    Recombination-Independent Genome Editing through CRISPR/Cas9-Enhanced TargeTron Delivery. Velazquez E, Lorenzo V, Al-Ramahi Y. ACS Synth Biol. 2019 Sep 20;8(9):2186-2193. doi: 10.1021/acssynbio.9b00293. Epub 2019 Sep 3. 10.1021/acssynbio.9b00293 PubMed 31419111
