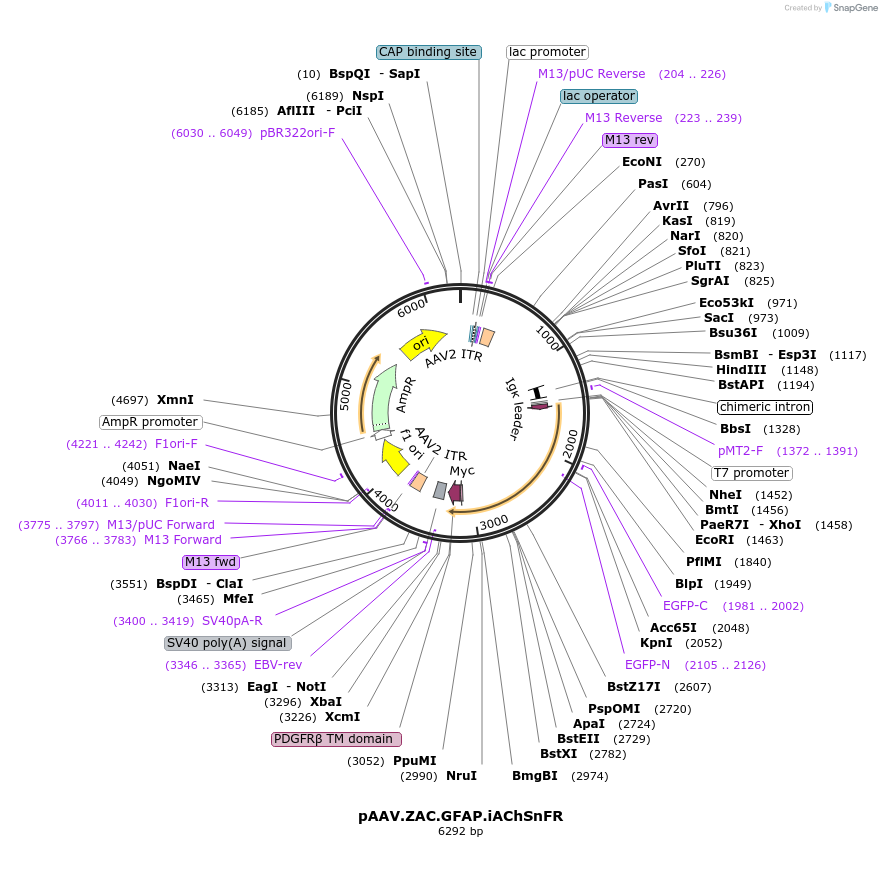

pAAV.ZAC.GFAP.iAChSnFR
(Plasmid #137962)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 137962 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pZAC2.1
  • Backbone manufacturer
    Addgene plasmid 44331
  • Backbone size w/o insert (bp) 4465
  • Total vector size (bp) 6292
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    iAChSnFR
  • Species
    Synthetic
  • Insert Size (bp)
    1827
  • Promoter GFAP

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer ATA AAG CCC TCG CAT CCC AGG AGC GAG
  • 3′ sequencing primer SV40
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV.ZAC.GFAP.iAChSnFR was a gift from Loren Looger (Addgene plasmid # 137962 ; http://n2t.net/addgene:137962 ; RRID:Addgene_137962)

  • For your References section:

    A fast genetically encoded fluorescent sensor for faithful in vivo acetylcholine detection in mice, fish, worms and flies. Borden PM, Zhang P, Shivange AV, Marvin JS, Cichon J, Dan C, Podgorski K, Figueiredo A, Novak O, Tanimoto M, Shigetomi E, Lobas MA, Kim H, Zhu PK, Zhang Y, Zheng WS, Fan C, Wang G, Xiang B, Gan L, Zhang G, Guo K, Lin L, Cai Y, Yee AG, Aggarwal A, Ford CP, Rees DC, Dietrich D, Khakh BS, Dittman JS, Gan W, Koyama M, Jayaraman V, Cheer JF, Lester HA, Zhu JJ, Looger LL. bioRxiv 2020 10.1101/2020.02.07.939504
