PurposeExpresses SpyTag003-mClover3 (a green fluorescent protein) in bacterial cytoplasm
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 133453 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepET28a
- Backbone size w/o insert (bp) 5369
- Total vector size (bp) 6051
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Kanamycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-

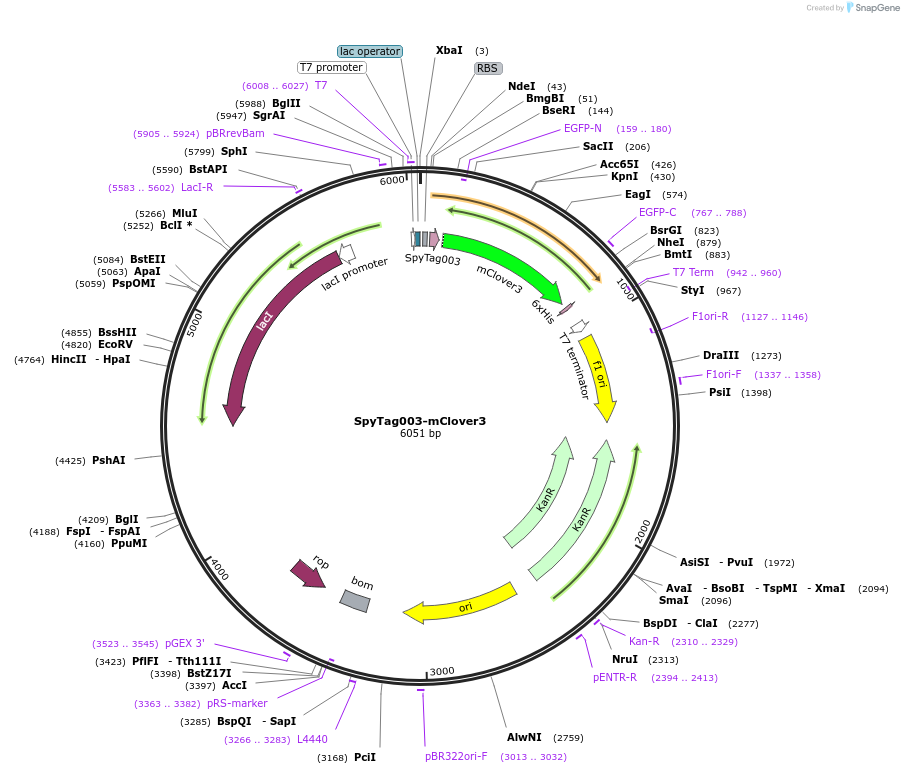

Gene/Insert nameSpyTag003-mClover3
-
SpeciesSynthetic
-
Insert Size (bp)834
- Promoter T7
-
Tags
/ Fusion Proteins
- GSGSGSGS linker (C terminal on insert)
- His6 (C terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer T7F
- 3′ sequencing primer T7R (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
SpyTag003-mClover3 was a gift from Mark Howarth (Addgene plasmid # 133453 ; http://n2t.net/addgene:133453 ; RRID:Addgene_133453) -
For your References section:
Approaching infinite affinity through engineering of peptide-protein interaction. Keeble AH, Turkki P, Stokes S, Khairil Anuar INA, Rahikainen R, Hytonen VP, Howarth M. Proc Natl Acad Sci U S A. 2019 Dec 10. pii: 1909653116. doi: 10.1073/pnas.1909653116. 10.1073/pnas.1909653116 PubMed 31822621
