SpyCatcher003 S49C
(Plasmid #133448)

• Purpose: Expresses SpyCatcher003 S49C in bacterial cytoplasm, with a unique cysteine for chemical coupling
• Depositing Lab: Mark Howarth
• Publication: Keeble et al Proc Natl Acad Sci U S A. 2019 Dec 10. pii: 1909653116. doi: 10.1073/pnas.1909653116.

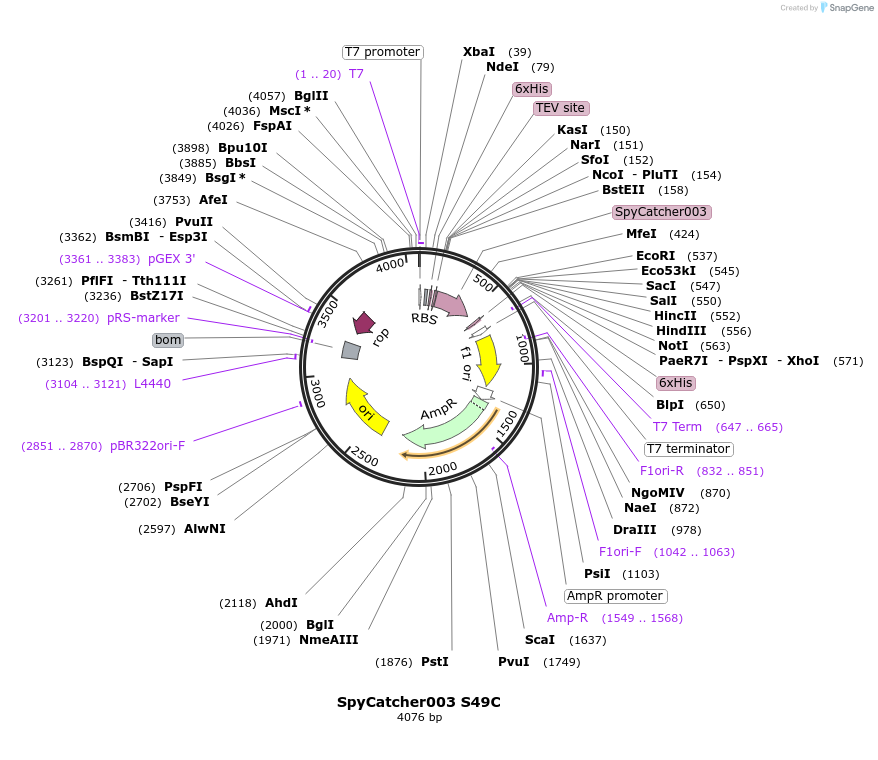

Backbone

• Vector backbone: pDEST14
• Backbone manufacturer: Thermo Fisher Scientific
• Backbone size w/o insert (bp): 3641
• Total vector size (bp): 4076
• Vector type: Bacterial Expression

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: SpyCatcher003 S49C
• Species: Synthetic
• Insert Size (bp): 435
• Mutation: Contains S49C mutation
• Promoter: T7
• Tags / Fusion Proteins:
  • His6 (N terminal on backbone)
  • TEV cleavage site (N terminal on insert)
  • GSSGS (C terminal on insert)

Cloning Information

• Cloning method: Gibson Cloning
• 5′ sequencing primer: T7F
• 3′ sequencing primer: T7R

Resource Information

• Articles Citing this Plasmid:
  • 2 References

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
