pAAV-hSyn-GCaMP 6m-p2A-ChRmine-Kv2.1-WPRE
(Plasmid #131004)

• Purpose: bicistronic AAV vector to express GCaMP6m and soma-targeted ChRmine under the control of human Synapsin promoter
• Depositing Lab: Karl Deisseroth
• Publication: Marshel et al Science. 2019 Aug 9;365(6453). pii: science.aaw5202. doi: 10.1126/science.aaw5202. Epub 2019 Jul 18.

Backbone

• Vector backbone: pAAV-MCS
• Backbone manufacturer: Stratagene
• Vector type: AAV

Growth in Bacteria

• Bacterial Resistance(s): Ampicillin, 100 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): NEB Stable
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: ChRmine
• Species: Tiarina fusus
• GenBank ID: MN194599
• Promoter: hSyn
• Tag / Fusion Protein:
  • Kv2.1-HA (C terminal on insert)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: BamHI (not destroyed)
• 3′ cloning site: EcoRI (not destroyed)
• 5′ sequencing primer: ccacgcgaggcgcgagatag
• 3′ sequencing primer: GAATACCAGTCAATCTTTCAC

Resource Information

• Supplemental Documents:

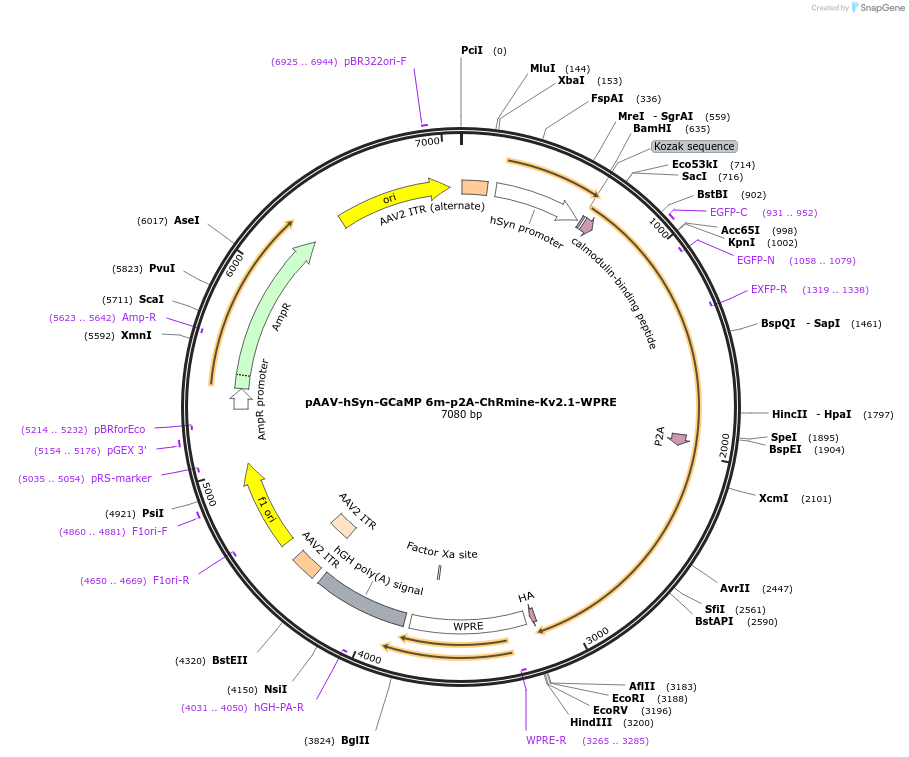

  • pAAV-hSyn-GCaMP6m-p2A-ChRmine-Kv2.1-WPRE.gb

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Information for AAV8 (Catalog # 131004-AAV8)

Purpose

Ready-to-use AAV8 particles produced from pAAV-hSyn-GCaMP 6m-p2A-ChRmine-Kv2.1-WPRE (#131004). In addition to the viral particles, you will also receive purified pAAV-hSyn-GCaMP 6m-p2A-ChRmine-Kv2.1-WPRE plasmid DNA.

hSyn-driven expression of calcium sensor GCaMP6m and bicistronic ChRmine (red-shifted channelrhodopsin). These AAV preparations are suitable purity for injection into animals.

Delivery

• Volume: 100 µL
• Titer: ≥ 1×10¹³ vg/mL
• Pricing: $375 USD for preparation of 100 µL virus + $30 USD for plasmid.
• Storage: Store at -80℃. Thaw just before use and keep on ice.
• Shipment: Viral particles are shipped frozen on dry ice. Plasmid DNA (≥ 200ng) will also be included in the shipment.

Viral Production & Use

• Packaging Plasmids: encode adenoviral helper sequences and AAV rep gene, AAV8 cap gene
• Buffer: PBS + 0.001% Poloxamer 188 + 200 mM NaCl
• Serotype: AAV8
• Purification: Iodixanol gradient ultracentrifugation

Biosafety

Requestor is responsible for compliance with their institution's biosafety regulations. Lentivirus is generally considered BSL-2. AAV is generally considered BSL-1, but may require BSL-2 handling depending on the insert. Biosafety Guide

Terms and Licenses

• Academic/Nonprofit Terms:
  • Terms of Use for Viral Vectors
• Industry Terms:
  • Not Available to Industry

Viral Quality Control

Quality Control:

• Addgene ensures high quality viral vectors by optimizing and standardizing production protocols and performing rigorous quality control (QC) (see a list of our QC assays). The specific QC assays performed varies for each viral lot. To learn which specific QC assays were performed on your lot, please contact us.
• Titer: the exact titer of your sample will be reported on the tube. The titer you see listed on this page is the guaranteed minimum titer. See how titers are measured.

Visit our viral production page for more information.
