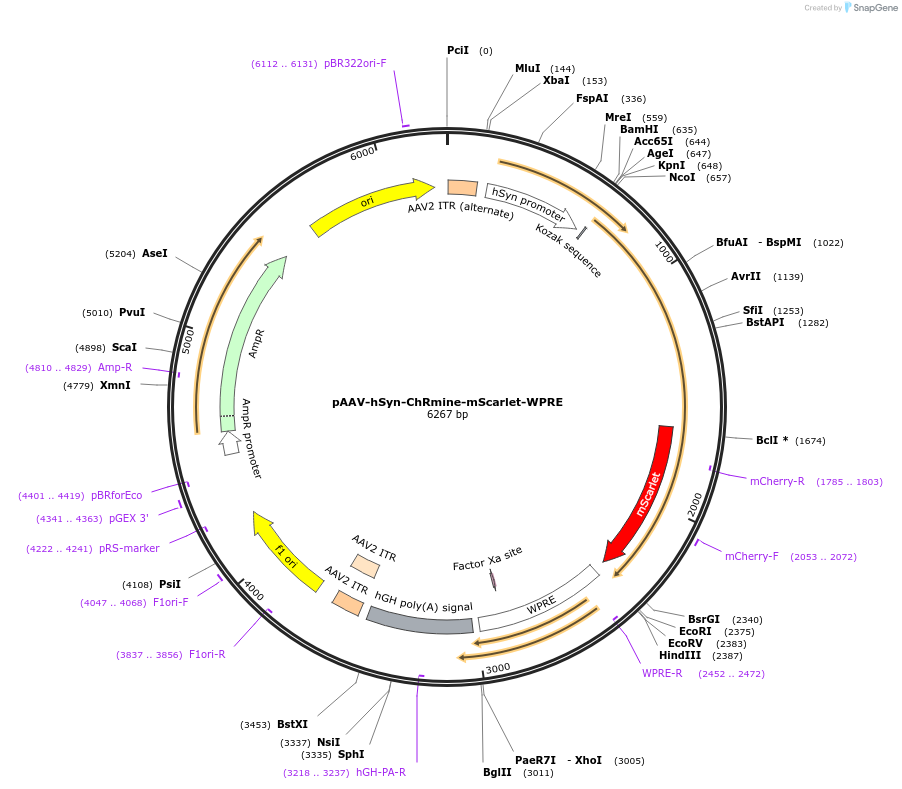

PurposeAAV vector to drive the expression of ChRmine-mScarlet under the control of human synapsin promoter
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 130994 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepAAV-MCS
-
Backbone manufacturerStratagene
-
Vector typeAAV
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameChRmine
-
SpeciesTiarina fusus
-
GenBank IDMN194599
- Promoter hSyn
-
Tag
/ Fusion Protein
- mScarlet (C terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site BamHI (not destroyed)
- 3′ cloning site EcoRI (not destroyed)
- 5′ sequencing primer ccacgcgaggcgcgagatag
- 3′ sequencing primer GAATACCAGTCAATCTTTCAC (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pAAV-hSyn-ChRmine-mScarlet-WPRE was a gift from Karl Deisseroth (Addgene plasmid # 130994 ; http://n2t.net/addgene:130994 ; RRID:Addgene_130994) -
For your References section:
Cortical layer-specific critical dynamics triggering perception. Marshel JH, Kim YS, Machado TA, Quirin S, Benson B, Kadmon J, Raja C, Chibukhchyan A, Ramakrishnan C, Inoue M, Shane JC, McKnight DJ, Yoshizawa S, Kato HE, Ganguli S, Deisseroth K. Science. 2019 Aug 9;365(6453). pii: science.aaw5202. doi: 10.1126/science.aaw5202. Epub 2019 Jul 18. 10.1126/science.aaw5202 PubMed 31320556
