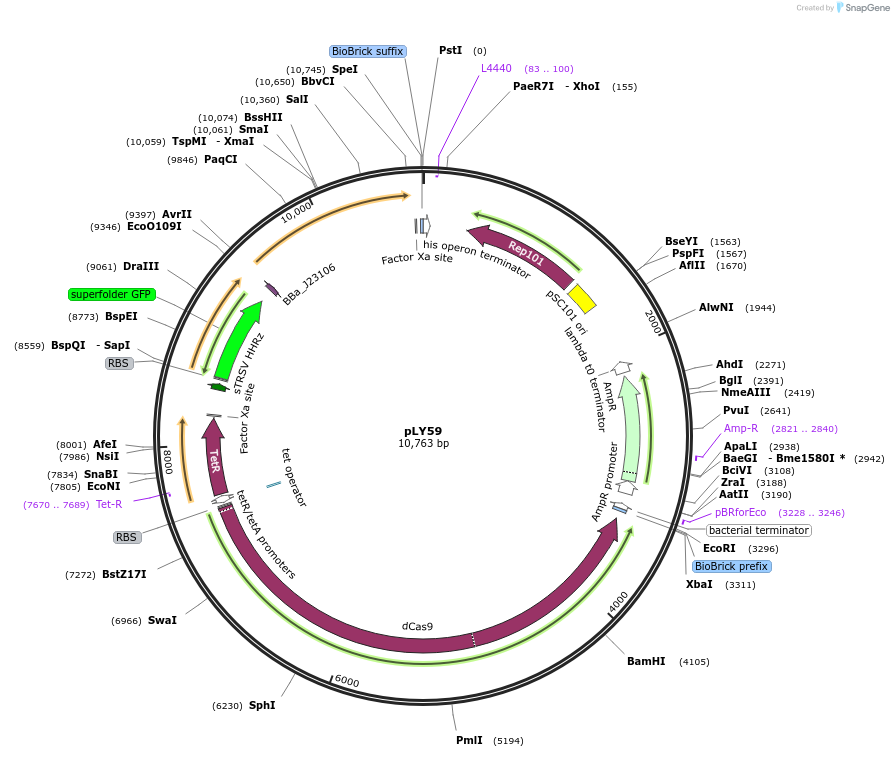

pLY59
(Plasmid #130927)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 130927 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pSB4A3mut
  • Backbone manufacturer
    Original version designed by: Reshma Shetty; Mutations introduced by: unknown
  • Backbone size w/o insert (bp) 3337
  • Total vector size (bp) 10765
  • Vector type
    Bacterial Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Growth instructions
    Culture in the Lennox’s Luria-Bertani (LB) medium (10 g/L peptone, 5 g/L yeast extract, 5 g/L NaCl)
  • Copy number
    Low Copy

Gene/Insert 1

  • Gene/Insert name
    dcas9
  • Species
    Synthetic; Streptococcus pyogenes
  • Insert Size (bp)
    4170
  • Mutation
    Mutations D10A and H840A on WT cas9. Synonymous mutation at R63 of dcas9 (CGT>CGC); Synonymous mutation at R447 of dcas9 (CGA>CGT)
  • Promoter Ptet

Cloning Information for Gene/Insert 1

  • Cloning method Unknown
  • 5′ sequencing primer TGCCACCTGACGTCTAAGAA
  • 3′ sequencing primer TGCGCTGTTAATCACTTTACTTTTATCTAATCTTG
    • (Common Sequencing Primers)

Gene/Insert 2

  • Gene/Insert name
    tetR
  • Species
    E. coli
  • Insert Size (bp)
    790
  • Mutation
    Synonymous mutation at S2 of tetR (TCT>TCA)
  • Promoter Ptet

Cloning Information for Gene/Insert 2

  • Cloning method Unknown
  • 5′ sequencing primer GAGCTGTCCGTTTGAGGCGAGTCGCTTCCGCTG
  • 3′ sequencing primer CTCGCCACGCACGGAAAACTTATGACCGTTGAC
    • (Common Sequencing Primers)

Gene/Insert 3

  • Gene/Insert name
    sfgfp
  • Species
    Synthetic
  • Insert Size (bp)
    1094
  • Promoter PpspA-2G6
  • Tag / Fusion Protein
    • ASV tag (C terminal on insert)

Cloning Information for Gene/Insert 3

  • Cloning method Restriction Enzyme
  • 5′ cloning site XbaI (destroyed during cloning)
  • 3′ cloning site SpeI (destroyed during cloning)
  • 5′ sequencing primer AGCATCAAGTCGCTAAAGAAGAAAGGGAAACACCTACTACTG
  • 3′ sequencing primer CACGAATATTTCCCGGCCAACGATAATTCAGC
    • (Common Sequencing Primers)

Gene/Insert 4

  • Gene/Insert name
    pspFΔHTH::MCP
  • Species
    E. coli
  • Insert Size (bp)
    1372
  • Mutation
    The HTH domain of the pspF gene was deleted (297-326); Synonymous mutation at N86 (AAT>AAC) of the MCP domain of pspFΔHTH::MCP
  • Promoter Anderson promoter: J23106
  • Tag / Fusion Protein
    • MCP (MS2 coat protein) (C terminal on insert)

Cloning Information for Gene/Insert 4

  • Cloning method Restriction Enzyme
  • 5′ cloning site XbaI (destroyed during cloning)
  • 3′ cloning site SpeI, PstI (not destroyed)
  • 5′ sequencing primer ATGCGTAAAGGCGAAGAGCTGTTCACTG
  • 3′ sequencing primer ATTACCGCCTTTGAGTGAGC
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

The Top10 bacterial strain should be used for downstream applications

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLY59 was a gift from Baojun Wang (Addgene plasmid # 130927 ; http://n2t.net/addgene:130927 ; RRID:Addgene_130927)

  • For your References section:

    Engineered CRISPRa enables programmable eukaryote-like gene activation in bacteria. Liu Y, Wan X, Wang B. Nat Commun. 2019 Aug 26;10(1):3693. doi: 10.1038/s41467-019-11479-0. 10.1038/s41467-019-11479-0 PubMed 31451697
