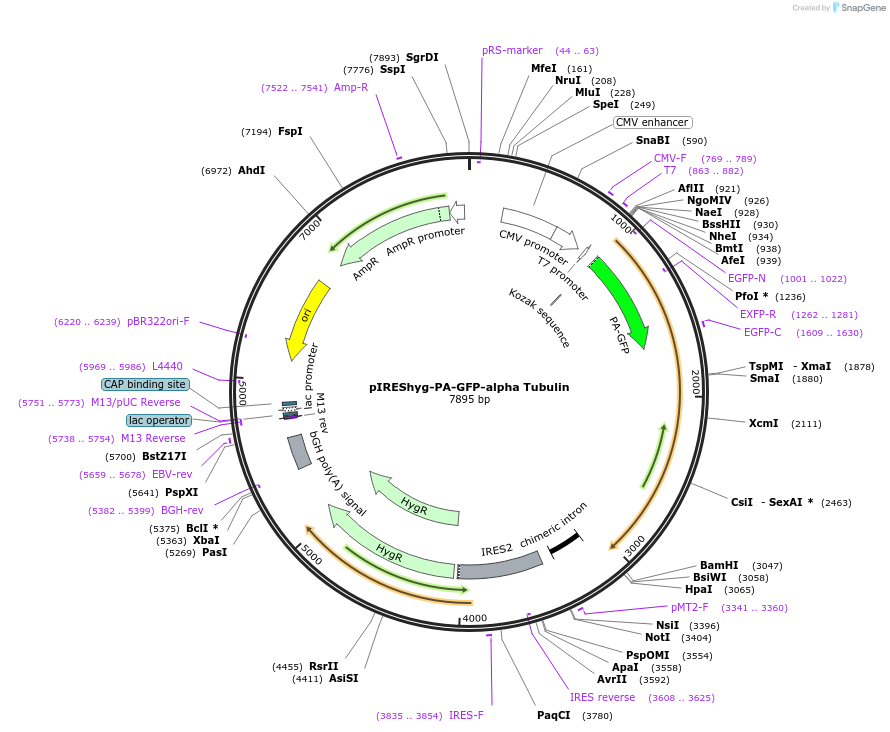

pIREShyg-PA-GFP-alpha Tubulin
(Plasmid #12296)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 12296 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pIREShyg2
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 5800
  • Vector type
    Mammalian Expression
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    alpha Tubulin
  • Alt name
    PA-GFP-Tubulin
  • Alt name
    k-alpha-1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2100
  • Entrez Gene
    TUBA1B (a.k.a. K-ALPHA-1)
  • Tag / Fusion Protein
    • PA-GFP (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer EGFP-C
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

PA-GFP-Tubulin came from the pPA-GFP-alpha Tubulin vector

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pIREShyg-PA-GFP-alpha Tubulin was a gift from Patricia Wadsworth (Addgene plasmid # 12296 ; http://n2t.net/addgene:12296 ; RRID:Addgene_12296)

  • For your References section:

    Peripheral, non-centrosome-associated microtubules contribute to spindle formation in centrosome-containing cells. Tulu US, Rusan NM, Wadsworth P. Curr Biol. 2003 Oct 28. 13(21):1894-9. 10.1016/j.cub.2003.10.002 PubMed 14588246
