Depositing Lab
-
Publication
-

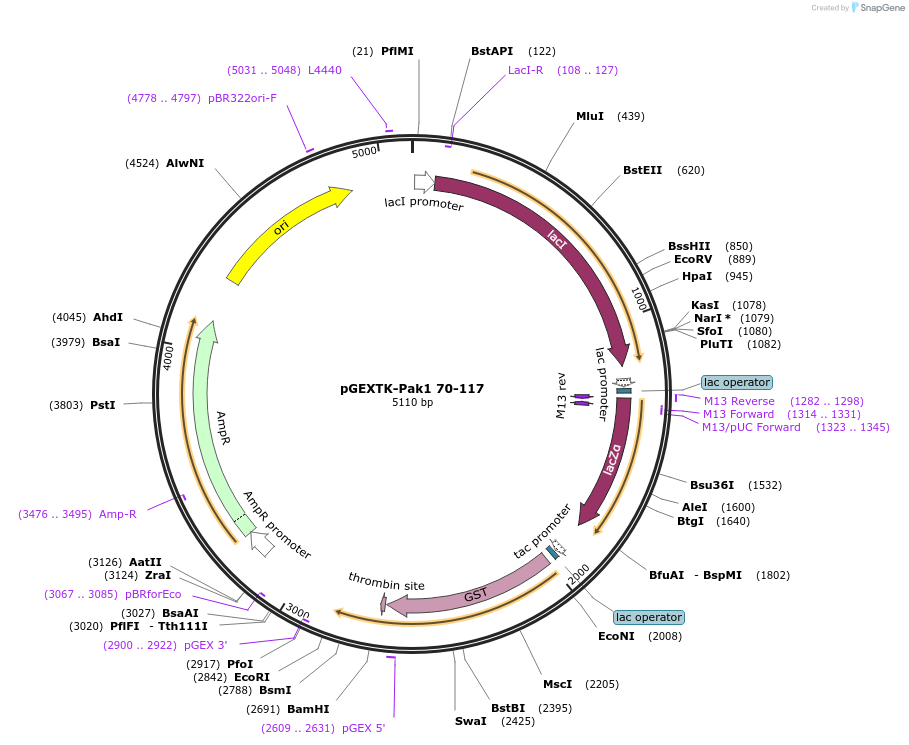

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 12217 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepGEX2TK
-
Backbone manufacturerAmersham
- Backbone size w/o insert (bp) 5000
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namePak1
-
Alt namePak1 PBD
-
SpeciesH. sapiens (human)
-
Insert Size (bp)150
-
MutationPBD (p21-binding domain), aa 70-117
-
Entrez GenePAK1 (a.k.a. IDDMSSD, PAKalpha, alpha-PAK, p65-PAK)
-
Tag
/ Fusion Protein
- GST (N terminal on insert)
Cloning Information
- Cloning method Restriction Enzyme
- 5′ sequencing primer pGEX-5' (Common Sequencing Primers)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pGEXTK-Pak1 70-117 was a gift from Jonathan Chernoff (Addgene plasmid # 12217 ; http://n2t.net/addgene:12217 ; RRID:Addgene_12217)
