pCMV6M-Pak1
(Plasmid #12209)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 12209 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pCMV6
  • Backbone size w/o insert (bp) 4900
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    JM109
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Pak1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2000
  • Entrez Gene
    PAK1 (a.k.a. IDDMSSD, PAKalpha, alpha-PAK, p65-PAK)
  • Promoter CMV
  • Tag / Fusion Protein
    • Myc (N terminal on insert)

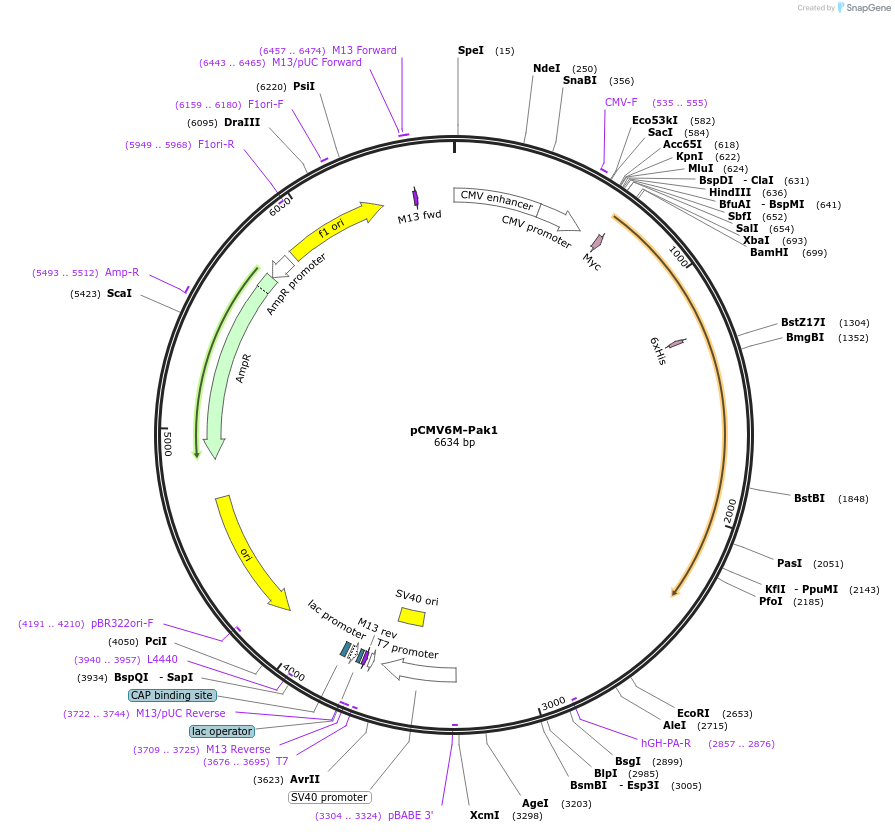

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site SalI (not destroyed)
  • 3′ cloning site EcoRI (not destroyed)
  • 5′ sequencing primer CMV-F
  • 3′ sequencing primer hgh-pA-R
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Cloning sites: SalI-myc-BamHI-Pak1-EcoRI.

The PAK1 insert in this plasmid contains L516I and G401S mutations, or SNPs, that were present from the very beginning (~1995). The crystal structure of Pak1 uses this clone, so it is present there too. Depositing laboratory states that these mutations should not affect plasmid function, as described in the associated publication.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCMV6M-Pak1 was a gift from Jonathan Chernoff (Addgene plasmid # 12209 ; http://n2t.net/addgene:12209 ; RRID:Addgene_12209)
  • For your References section:

    Human p21-activated kinase (Pak1) regulates actin organization in mammalian cells. Sells MA, Knaus UG, Bagrodia S, Ambrose DM, Bokoch GM, Chernoff J. Curr Biol. 1997 Mar 1. 7(3):202-10. 10.1016/S0960-9822(97)70091-5 PubMed 9395435
