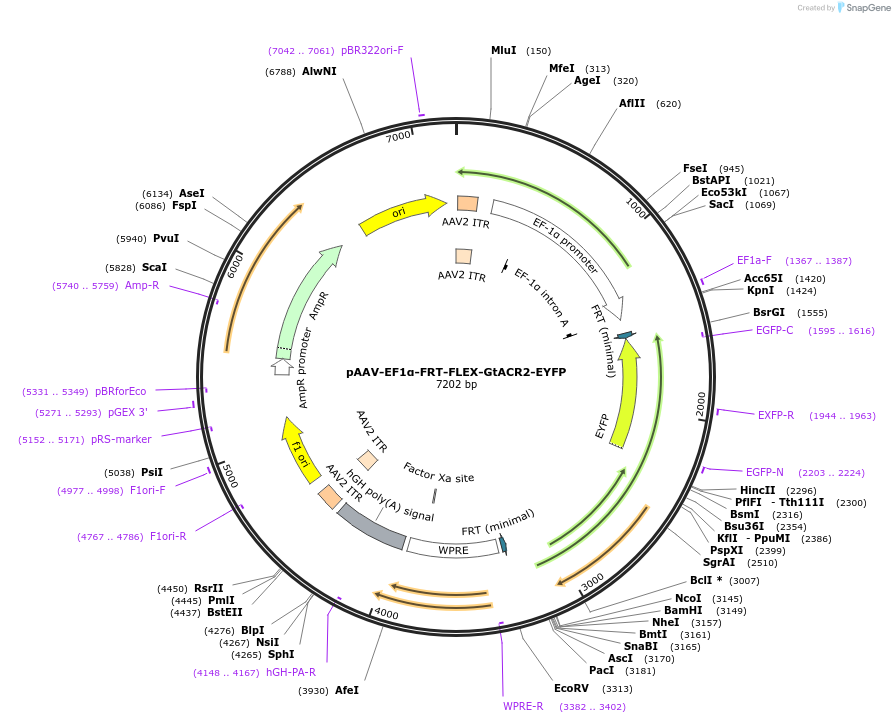

pAAV-EF1α-FRT-FLEX-GtACR2-EYFP
(Plasmid #114369)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 114369 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pAAV
  • Backbone size w/o insert (bp) 5603
  • Total vector size (bp) 7202
  • Vector type
    Mammalian Expression, AAV

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    GtACR2-EYFP
  • Alt name
    anion channelrhodopsin 2
  • Insert Size (bp)
    1599
  • Entrez Gene
    NEWENTRY
  • Promoter Ef1a
  • Tag / Fusion Protein
    • EYFP (C terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BsrGI (not destroyed)
  • 3′ cloning site NheI, BamHI (not destroyed)
  • 5′ sequencing primer TCAAGCCTCAGACAGTGGTTC (Ef1a-F)
  • 3′ sequencing primer CATAGCGTAAAAGGAGCAACA (WPRE-R)
  • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    Backbone vector obtained from pAAV-EF1α-FRT-FLEX-mNaChBac-T2A-tdTomato (Addgene #60658); Insert obtained from pLenti-UbiC-GtACR2-EYFP (Addgene #67877)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pAAV-EF1α-FRT-FLEX-GtACR2-EYFP was a gift from Mingshan Xue (Addgene plasmid # 114369 ; http://n2t.net/addgene:114369 ; RRID:Addgene_114369)
  • For your References section:

    Targeting light-gated chloride channels to neuronal somatodendritic domain reduces their excitatory effect in the axon. Messier JE, Chen H, Cai ZL, Xue M. Elife. 2018 Aug 9;7. pii: 38506. doi: 10.7554/eLife.38506. 10.7554/eLife.38506 PubMed 30091701
