pCAG-CoChR-mRuby2-ST
(Plasmid
#109131)
-
PurposeCation channelrhodopsin CoChR fused to mRuby2 fluorophore and targeted to the neuronal soma and proximal dendrites
-
Depositing Lab
-

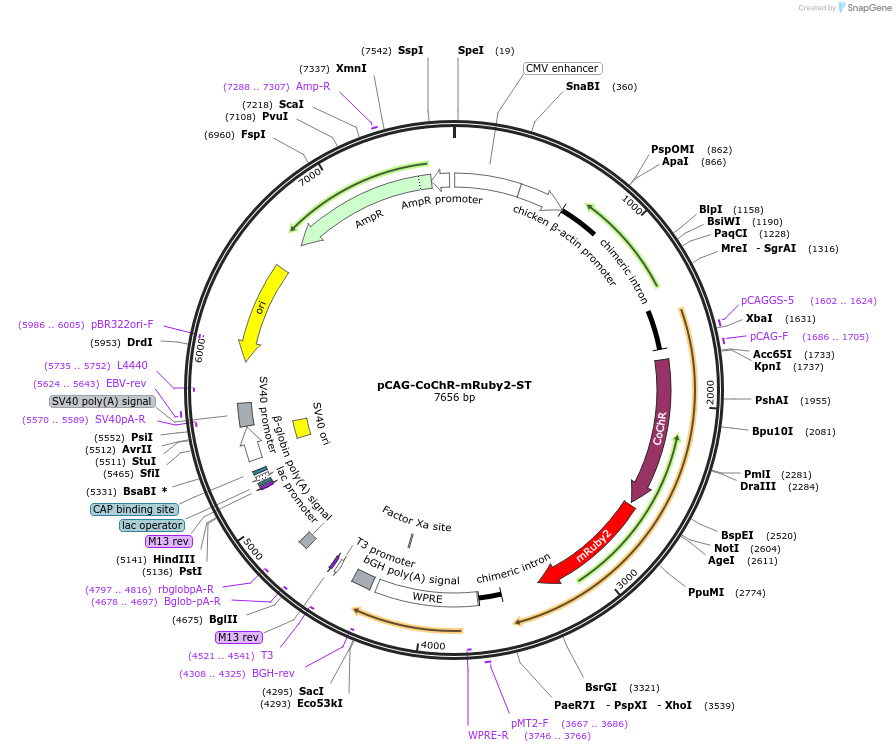

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 109131 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepCAGGS
- Backbone size w/o insert (bp) 5828
- Total vector size (bp) 7625
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameCoChR-mRuby2-ST
-
Insert Size (bp)1797
- Promoter CAG
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer Custom
- 3′ sequencing primer WPRE_R (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pCAG-CoChR-mRuby2-ST was a gift from Hillel Adesnik (Addgene plasmid # 109131 ; http://n2t.net/addgene:109131 ; RRID:Addgene_109131) -
For your References section:
Precise multimodal optical control of neural ensemble activity. Mardinly AR, Oldenburg IA, Pegard NC, Sridharan S, Lyall EH, Chesnov K, Brohawn SG, Waller L, Adesnik H. Nat Neurosci. 2018 Apr 30. pii: 10.1038/s41593-018-0139-8. doi: 10.1038/s41593-018-0139-8. 10.1038/s41593-018-0139-8 PubMed 29713079
