PurposeMammalian expression vector for xCas9(3.6)-ABE
-
Depositing Lab
-

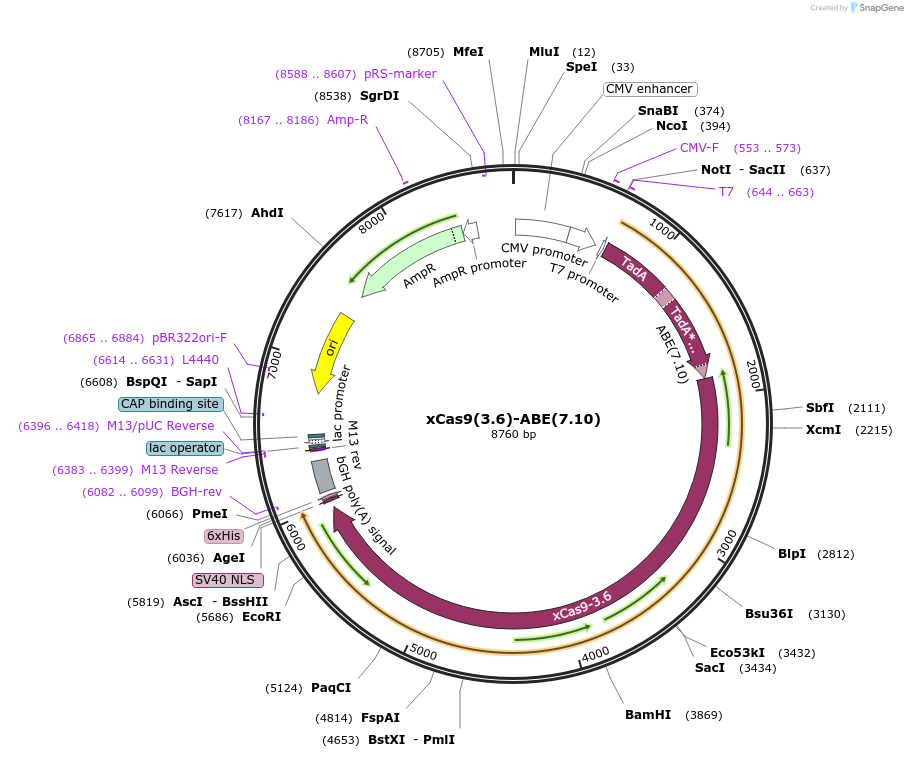

Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 108387 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepCMV
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)Mach1
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namexCas9(3.6)-ABE(7.10)
-
Alt nameTadA-linker(32aa)-TadA*(7.10)-linker(32aa)-nxCas9(3.6)-NLS
-
SpeciesSynthetic
-
Insert Size (bp)5361
-
MutationE108G, S217A, A262T, S409I, E480K, E543D, M694I, E1219V
-
Tag
/ Fusion Protein
- NLS (N terminal on insert)
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer CMV Forward
- 3′ sequencing primer M13 (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
xCas9(3.6)-ABE(7.10) was a gift from David Liu (Addgene plasmid # 108387 ; http://n2t.net/addgene:108387 ; RRID:Addgene_108387) -
For your References section:
Evolved Cas9 variants with broad PAM compatibility and high DNA specificity. Hu JH, Miller SM, Geurts MH, Tang W, Chen L, Sun N, Zeina CM, Gao X, Rees HA, Lin Z, Liu DR. Nature. 2018 Feb 28. pii: nature26155. doi: 10.1038/nature26155. 10.1038/nature26155 PubMed 29512652
