CAG-LoxpStopLoxp-NLS-dCas9-HA-NLS-NLS-10xGCN4-NLS-P2A-scFv-NLS-P65-HSF1-Flag-T2A-EGFP-WPRE-PolyA
(Plasmid
#107307)
-
PurposeEncoding an SPH activation system
-
Depositing Lab
-

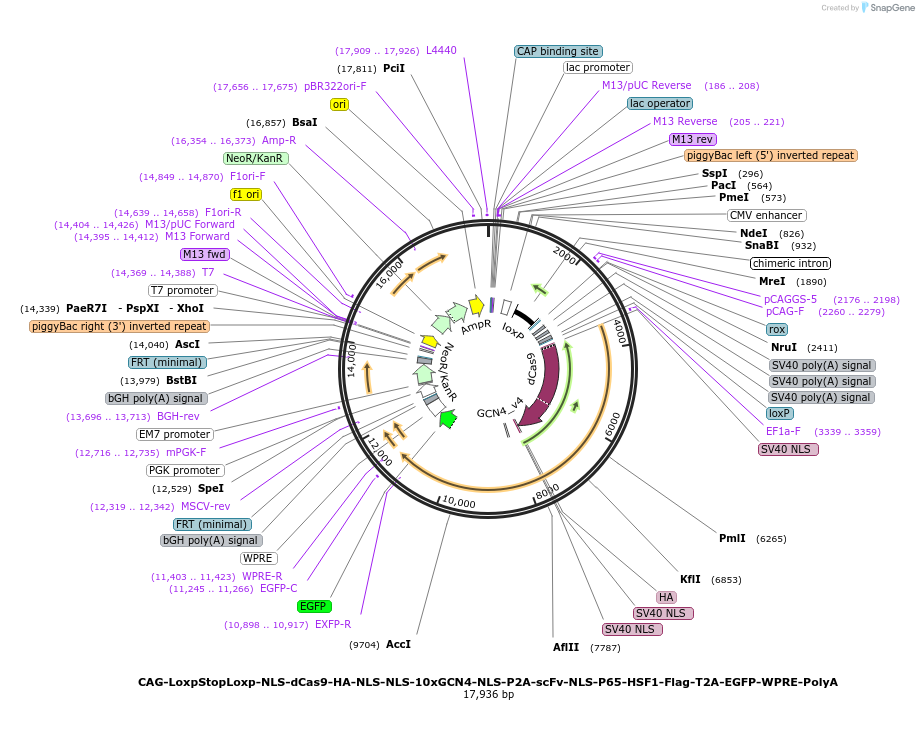

Sequence Information
-
Sequences (2) — Accept Affinity Reagent Sequence Policy
-
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 107307 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonePB
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin and Kanamycin, 100 & 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameCAG-LSL-dCas9-10xGCN4-P2A-scFv-P65-HSF1-T2A-EGFP-WPRE-PolyA
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site unknown (unknown if destroyed)
- 3′ cloning site unknown (unknown if destroyed)
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
CAG-LoxpStopLoxp-NLS-dCas9-HA-NLS-NLS-10xGCN4-NLS-P2A-scFv-NLS-P65-HSF1-Flag-T2A-EGFP-WPRE-PolyA was a gift from Hui Yang (Addgene plasmid # 107307 ; http://n2t.net/addgene:107307 ; RRID:Addgene_107307) -
For your References section:
In vivo simultaneous transcriptional activation of multiple genes in the brain using CRISPR-dCas9-activator transgenic mice. Zhou H, Liu J, Zhou C, Gao N, Rao Z, Li H, Hu X, Li C, Yao X, Shen X, Sun Y, Wei Y, Liu F, Ying W, Zhang J, Tang C, Zhang X, Xu H, Shi L, Cheng L, Huang P, Yang H. Nat Neurosci. 2018 Jan 15. pii: 10.1038/s41593-017-0060-6. doi: 10.1038/s41593-017-0060-6. 10.1038/s41593-017-0060-6 PubMed 29335603
