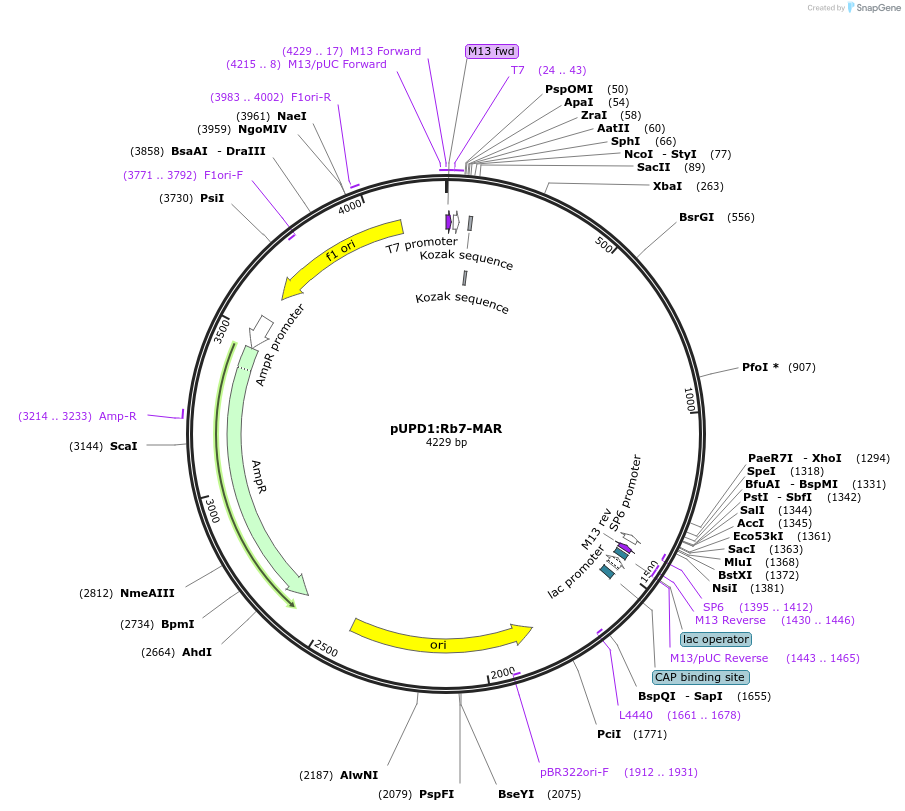

pUPD1:Rb7-MAR
(Plasmid #106212)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 106212 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pUPD1
  • Backbone manufacturer
    GoldenBraid kit from Diego Orzaez (Addgene kit # 1000000076 ), IBMCP, Valencia, Spain
  • Backbone size w/o insert (bp) 3055
  • Vector type
    Plant Expression, Synthetic Biology

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    N.tabacum RB7 matrix attachment region
  • Alt name
    RB7-MAR
  • Alt name
    RB7-SAR
  • Insert Size (bp)
    1180

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BsmBI (destroyed during cloning)
  • 3′ cloning site BsmBI (destroyed during cloning)
  • 5′ sequencing primer M13F
  • 3′ sequencing primer M13R
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pUPD1:Rb7-MAR was a gift from Tomáš Moravec (Addgene plasmid # 106212 ; http://n2t.net/addgene:106212 ; RRID:Addgene_106212)
