pFUSEss-CHIg-mG1_Arg322Lys
(Plasmid
#105849)
-
PurposeExpression plasmid coding for mutated heavy chain of mouse IgG1 antibody specific to antigen B of the ABO blood group system, clone M18. Mutation: Arg322Lys (EU numbering).
-
Depositing Lab
-
Sequence Information
-
Sequences (2) — Accept Affinity Reagent Sequence Policy
-
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 105849 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |

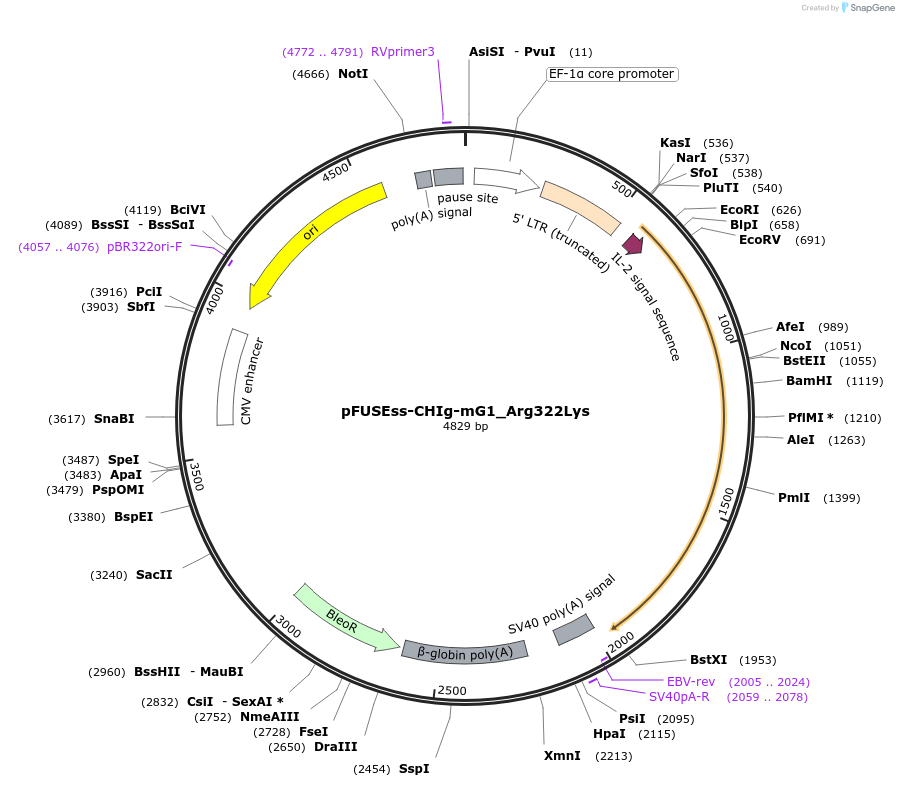

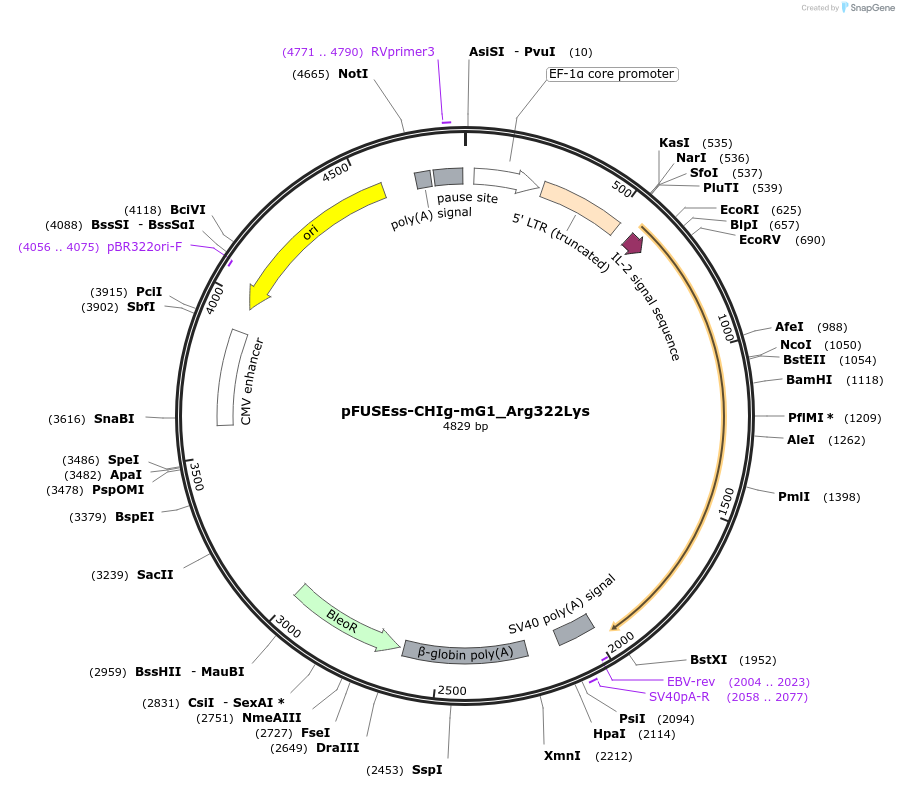

Backbone
-
Vector backbonepFUSEss-CHIg-mG1
-
Backbone manufacturerInvivogen
- Backbone size w/o insert (bp) 4474
- Total vector size (bp) 4829
-
Modifications to backboneNucleotides coding for Arg322 (EU numbering) were changed into triplet encoding Lys.
-
Vector typeMammalian Expression
-
Selectable markersZeocin
Growth in Bacteria
-
Bacterial Resistance(s)Bleocin (Zeocin), 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameIgG1 heavy chain
-
Alt nameIghg1
-
SpeciesM. musculus (mouse)
-
Insert Size (bp)355
-
MutationArg322Lys in constant region of IgG1 heavy chain
-
Entrez GeneIghg1 (a.k.a. IgG1, Igh-4, VH7183)
- Promoter hEF1-HTLV
Cloning Information
- Cloning method Restriction Enzyme
- 5′ cloning site EcoR1 (not destroyed)
- 3′ cloning site AfeI (not destroyed)
- 5′ sequencing primer ATGTACAGGATGCAACTCCTG
- 3′ sequencing primer EBV-rev (Common Sequencing Primers)
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pFUSEss-CHIg-mG1_Arg322Lys was a gift from Joanna Bereta (Addgene plasmid # 105849 ; http://n2t.net/addgene:105849 ; RRID:Addgene_105849) -
For your References section:
CH2 Domain of Mouse IgG3 Governs Antibody Oligomerization, Increases Functional Affinity to Multivalent Antigens and Enhances Hemagglutination. Klaus T, Bereta J. Front Immunol. 2018 May 23;9:1096. doi: 10.3389/fimmu.2018.01096. eCollection 2018. 10.3389/fimmu.2018.01096 PubMed 29875771
