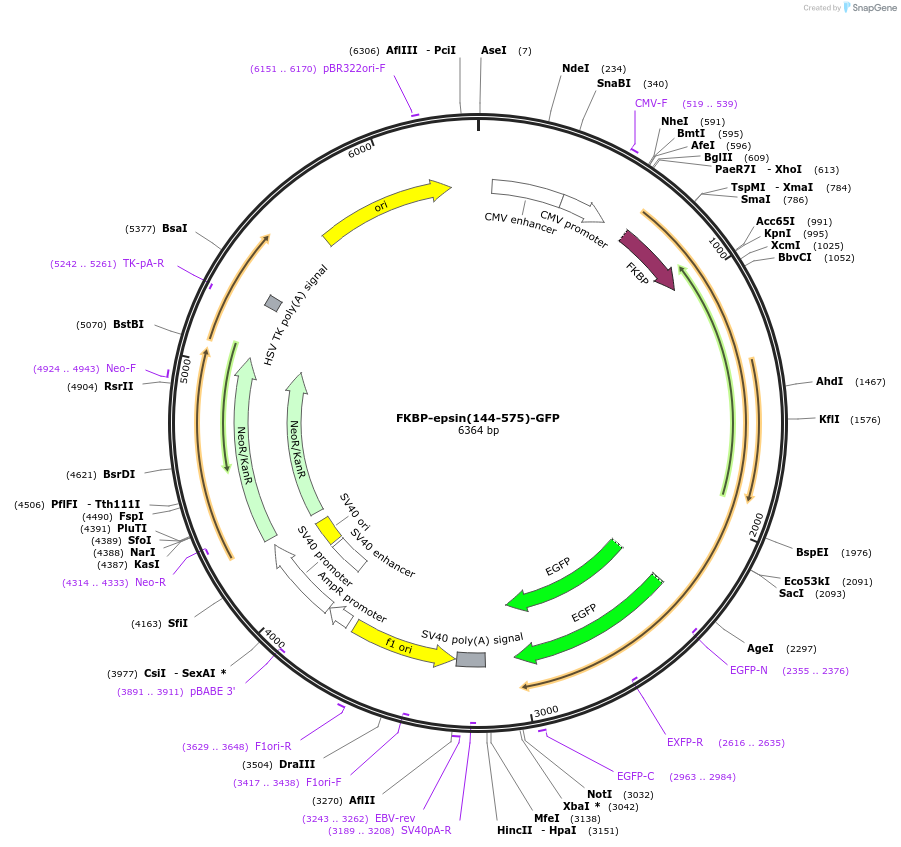

FKBP-epsin(144-575)-GFP
(Plasmid #100733)

• Purpose: To express a clathrin "hook" in mammalian cells to hot-wire endocytosis
• Depositing Lab: Stephen Royle
• Publication: Wood et al J Cell Biol. 2017 Sep 27. pii: jcb.201702188. doi: 10.1083/jcb.201702188.

Backbone

• Vector backbone: pEGFP-N1
• Vector type: Mammalian Expression
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: epn1
• Alt name: epsin1
• Species: M. musculus (mouse)
• Mutation: clathrin binding middle part aa 144-575
• GenBank ID:
• Entrez Gene: Epn1 (a.k.a. AA269831, Ibp1)
• Promoter: CMV
• Tags / Fusion Proteins:
  • FKBP (N terminal on insert)
  • GFP (C terminal on insert)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: AgeI (unknown if destroyed)
• 3′ cloning site: Acc65I (unknown if destroyed)
• 5′ sequencing primer: CMV Forward

Resource Information

• Supplemental Documents:
  • FKBP-epsin(144-575)-GFP.gb
• Article Citing this Plasmid:
  • 1 Reference

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
