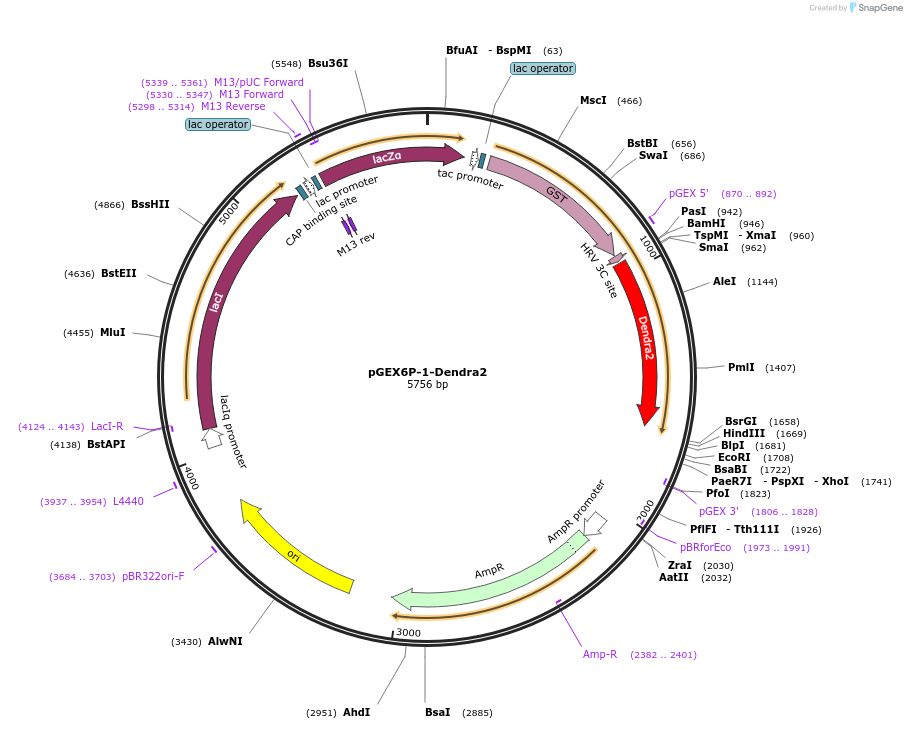

pGEX6P-1-Dendra2
(Plasmid #82436)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 82436 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pGEX6P-1
  • Backbone manufacturer
    Amersham
  • Backbone size w/o insert (bp) 5038
  • Total vector size (bp) 5755
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    Dendra2
  • Species
    Synthetic
  • Promoter tac
  • Tag / Fusion Protein
    • GST tag

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BamH1 (not destroyed)
  • 3′ cloning site HindIII (not destroyed)
  • 5′ sequencing primer TATAGCATGGCCTTTGCAGGG
  • 3′ sequencing primer ttcaccgtcatcaccgaaac
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    The Dendra2 gene was obtained from Evrogen.
  • Article Citing this Plasmid

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pGEX6P-1-Dendra2 was a gift from Periklis Pantazis (Addgene plasmid # 82436 ; http://n2t.net/addgene:82436 ; RRID:Addgene_82436)
  • For your References section:

    Labeling cellular structures in vivo using confined primed conversion of photoconvertible fluorescent proteins. Mohr MA, Argast P, Pantazis P. Nat Protoc. 2016 Dec;11(12):2419-2431. doi: 10.1038/nprot.2016.134. Epub 2016 Nov 3. 10.1038/nprot.2016.134 PubMed 27809312
