Addgene

BSG-bio-His
(Plasmid #53146)

Ordering

Item Catalog # Description Quantity Price (USD)
Plasmid 53146 Standard format: Plasmid sent in bacteria as agar stab 1 $85 *

* Log in to view industry pricing.

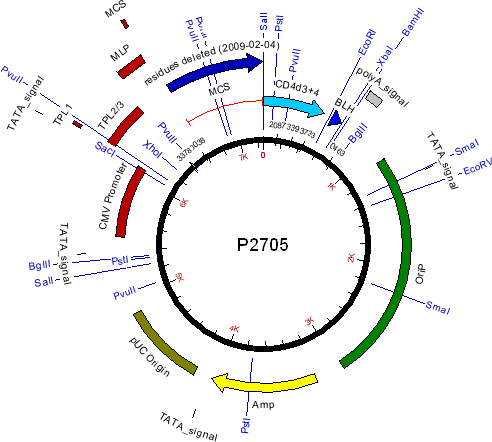

Backbone

  • Vector backbone
    pTT3
  • Backbone manufacturer
    Yves Durocher, NRC
  • Backbone size w/o insert (bp) 6635
  • Total vector size (bp) 7256
  • Modifications to backbone
    Rat CD4 d3+4, enzymatic biotinylation sequence, linker and His tag (CD4d3+4-BioLHis).
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    Top10
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Basigin
  • Alt name
    BSG
  • Alt name
    Basigin isoform 1
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    621
  • Entrez Gene
    BSG (a.k.a. 5F7, CD147, EMMPRIN, EMPRIN, HAb18G, OK, TCSF)
  • Promoter CMV
  • Tags / Fusion Proteins
    • rat CD4 d3+4 (C terminal on backbone)
    • enzymatic biotinylation sequence (C terminal on backbone)
    • His tag (C terminal on backbone)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NotI (not destroyed)
  • 3′ cloning site AscI (not destroyed)
  • 5′ sequencing primer CMV-fwd
  • (Common Sequencing Primers)

Resource Information

  • A portion of this plasmid was derived from a plasmid made by
    Insert was chemically synthesised.
  • Article Citing this Plasmid

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Article ref 9

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    BSG-bio-His was a gift from Gavin Wright (Addgene plasmid # 53146 ; http://n2t.net/addgene:53146 ; RRID:Addgene_53146)
  • For your References section:

    A human platelet receptor protein microarray identifies FcepsilonR1alpha as an activating PEAR1 ligand. Sun Y, Vandenbriele C, Kauskot A, Verhamme P, Hoylaerts MF, Wright GJ. Mol Cell Proteomics. 2015 Feb 23. pii: mcp.M114.046946. 10.1074/mcp.M114.046946 PubMed 25713122
