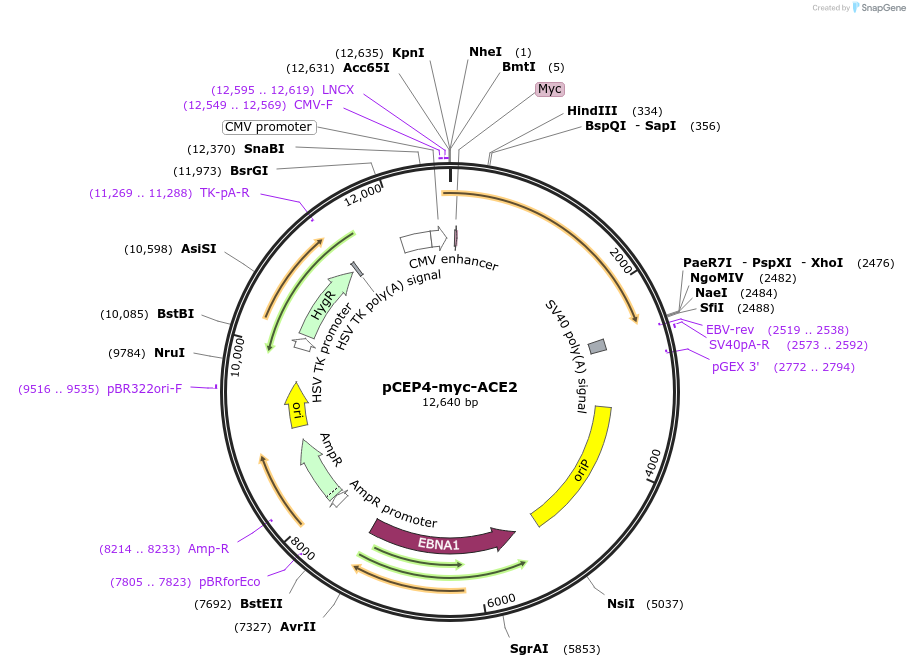

pCEP4-myc-ACE2
(Plasmid #141185)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 141185 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pCEP4
  • Backbone manufacturer
    Invitrogen
  • Backbone size w/o insert (bp) 10381
  • Total vector size (bp) 12862
  • Vector type
    Mammalian Expression
  • Selectable markers
    Hygromycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Angiotensin-converting enzyme 2
  • Alt name
    ACE2
  • Alt name
    peptidyl-dipeptidase A
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    2481
  • GenBank ID
    NM_021804.1
  • Entrez Gene
    ACE2 (a.k.a. ACEH)
  • Promoter CMV
  • Tags / Fusion Proteins
    • Signal peptide from influenza HA (N terminal on insert)
    • Extracellular c-myc epitope tag (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NheI (not destroyed)
  • 3′ cloning site XhoI (not destroyed)
  • 5′ sequencing primer CMV-fwd
  • 3′ sequencing primer EBV-rev
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pCEP4-myc-ACE2 was a gift from Erik Procko (Addgene plasmid # 141185 ; http://n2t.net/addgene:141185 ; RRID:Addgene_141185)
  • For your References section:

    Engineering human ACE2 to optimize binding to the spike protein of SARS coronavirus 2. Chan KK, Dorosky D, Sharma P, Abbasi SA, Dye JM, Kranz DM, Herbert AS, Procko E. Science. 2020 Sep 4;369(6508):1261-1265. doi: 10.1126/science.abc0870. Epub 2020 Aug 4. 10.1126/science.abc0870 PubMed 32753553
