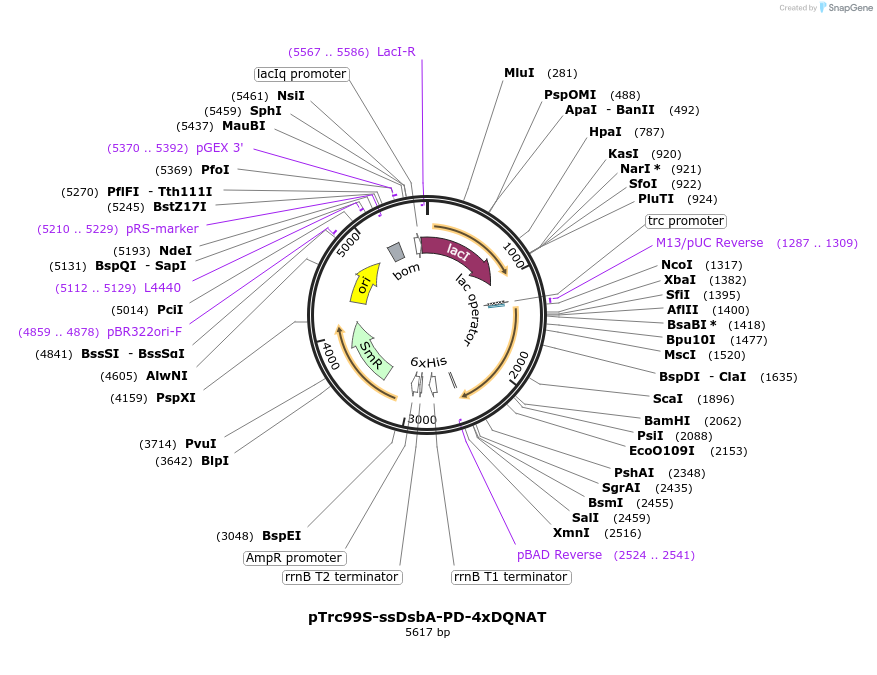

pTrc99S-ssDsbA-PD-4xDQNAT
(Plasmid #128399)

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 128399 Standard format: Plasmid sent in bacteria as agar stab 1 $85

Backbone

  • Vector backbone
    pTrc99S
  • Backbone size w/o insert (bp) 4535
  • Total vector size (bp) 5625
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Spectinomycin and Streptomycin, 50 & 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    H. influenzae protein D
  • Species
    H. influenzae
  • Insert Size (bp)
    1161
  • Promoter trc
  • Tags / Fusion Proteins
    • 4xDQNAT glycosylation tag (C terminal on insert)
    • 6xHis tag (C terminal on insert)
    • DsbA signal sequence for periplasmic translocation (N terminal on backbone)

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer GACAATTAATCATCCGGCTCG
  • 3′ sequencing primer GATTTAATCTGTATCAGG
  • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pTrc99S-ssDsbA-PD-4xDQNAT was a gift from Michael Jewett (Addgene plasmid # 128399 ; http://n2t.net/addgene:128399 ; RRID:Addgene_128399)
  • For your References section:

    On-demand biomanufacturing of protective conjugate vaccines. Stark JC, Jaroentomeechai T, Moeller TD, Hershewe JM, Warfel KF, Moricz BS, Martini AM, Dubner RS, Hsu KJ, Stevenson TC, Jones BD, DeLisa MP, Jewett MC. Sci Adv. 2021 Feb 3;7(6). pii: 7/6/eabe9444. doi: 10.1126/sciadv.abe9444. Print 2021 Feb. 10.1126/sciadv.abe9444 PubMed 33536221
