pPPAT-EGFP
(Plasmid #99105)

• Purpose: Expresses human PPAT-EGFP fusion in mammalian cells
• Depositing Lab: Stephen Benkovic
• Publication: An et al Science. 2008 Apr 4;320(5872):103-6. doi: 10.1126/science.1152241.

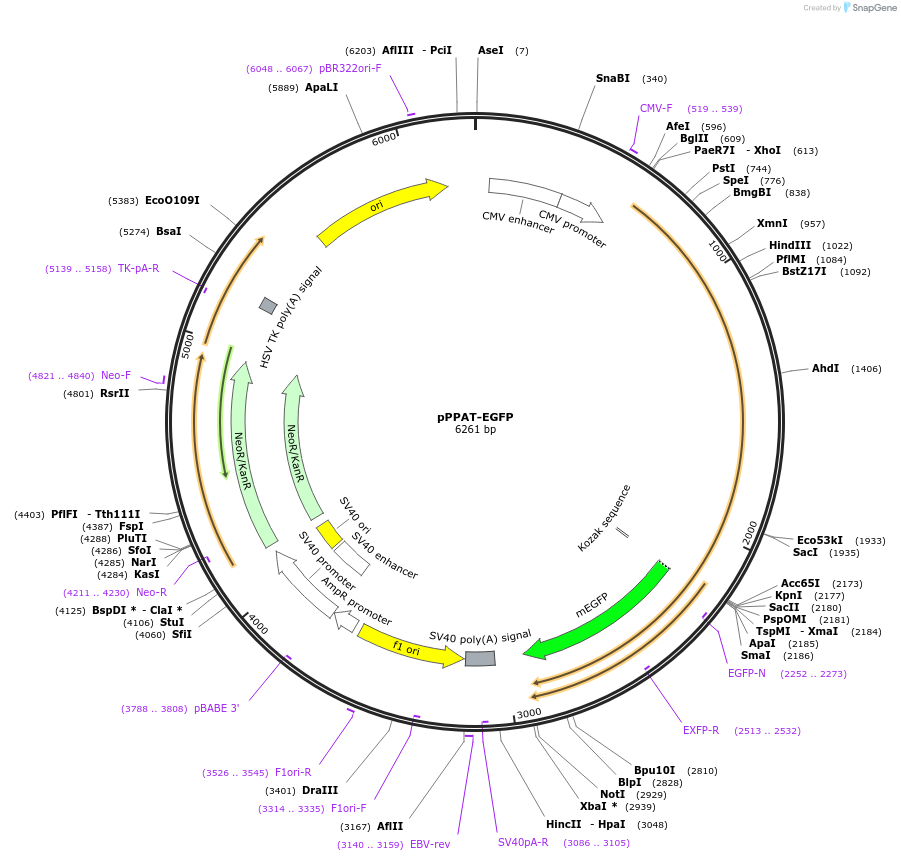

Backbone

• Vector backbone: pEGFP-N1
• Backbone manufacturer: Clontech
• Backbone size w/o insert (bp): 4733
• Total vector size (bp): 6261
• Modifications to backbone: A206K, L221K, and F223R mutations in EGFP gene to minimize dimerization
• Vector type: Mammalian Expression
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Copy number: Unknown

Gene/Insert

• Gene/Insert name: PPAT
• Alt name: phosphoribosyl pyrophosphate amidotransferase
• Species: H. sapiens (human)
• Insert Size (bp): 1551
• GenBank ID: NM_002703
• Entrez Gene: PPAT (a.k.a. ATASE, GPAT, PRAT)
• Promoter: CMV
• Tag / Fusion Protein:
  • EGFP (enhanced green fluorescent protein) (C terminal on backbone)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: XhoI (not destroyed)
• 3′ cloning site: KpnI (not destroyed)
• 5′ sequencing primer: CGCAAATGGGCGGTAGGCGTG

Resource Information

• Article Citing this Plasmid:
  • 1 Reference

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry
