pRRG1013-LDLRR-1
(Plasmid #99093)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 99093 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

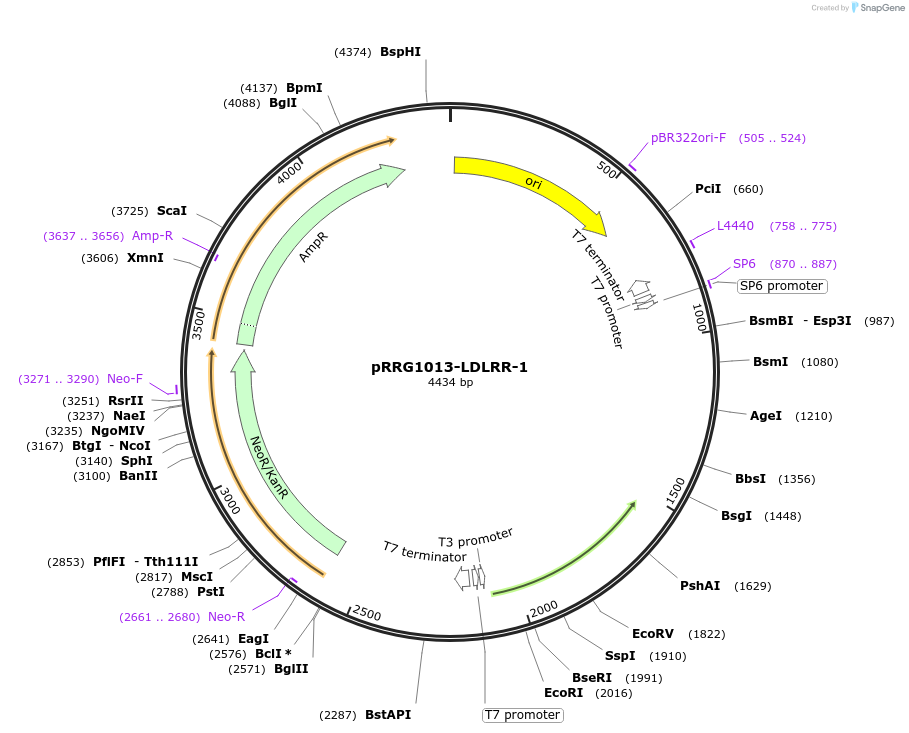

Backbone

  • Vector backbone
    pJC53.2
  • Backbone manufacturer
    Phillip Newmark (Addgene plasmid # 26536)
  • Backbone size w/o insert (bp) 3240
  • Vector type
    T/A Cloning Vector for dsRNA generation and the generation of sense and anti-sense probes

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin and Kanamycin, 100 & 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    LDLRR-1 in situ probe
  • Alt name
    KY024334.1 (Genbank)
  • Alt name
    dd_Smed_v6_1581_0_1
  • Species
    Schmidtea mediterranea
  • Insert Size (bp)
    2762

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Eam1105I (destroyed during cloning)
  • 3′ cloning site Eam1105I (destroyed during cloning)
  • 5′ sequencing primer T3
  • 3′ sequencing primer Sp6
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.

Depositor Comments

Cloning primers: F-GCCTCACAATAGCACTTTCG R-GTAAATATTGATAATATATTTAAT

Note: There is a 1.3 kb deletion in the LDLRR-1 insert compared to KY024334.1. The depositor has confirmed this does not affect plasmid function.

How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pRRG1013-LDLRR-1 was a gift from Phillip Newmark (Addgene plasmid # 99093 ; http://n2t.net/addgene:99093 ; RRID:Addgene_99093)

  • For your References section:

    A functional genomics screen in planarians reveals regulators of whole-brain regeneration. Roberts-Galbraith RH, Brubacher JL, Newmark PA. Elife. 2016 Sep 9;5. pii: e17002. doi: 10.7554/eLife.17002. 10.7554/eLife.17002 PubMed 27612384
