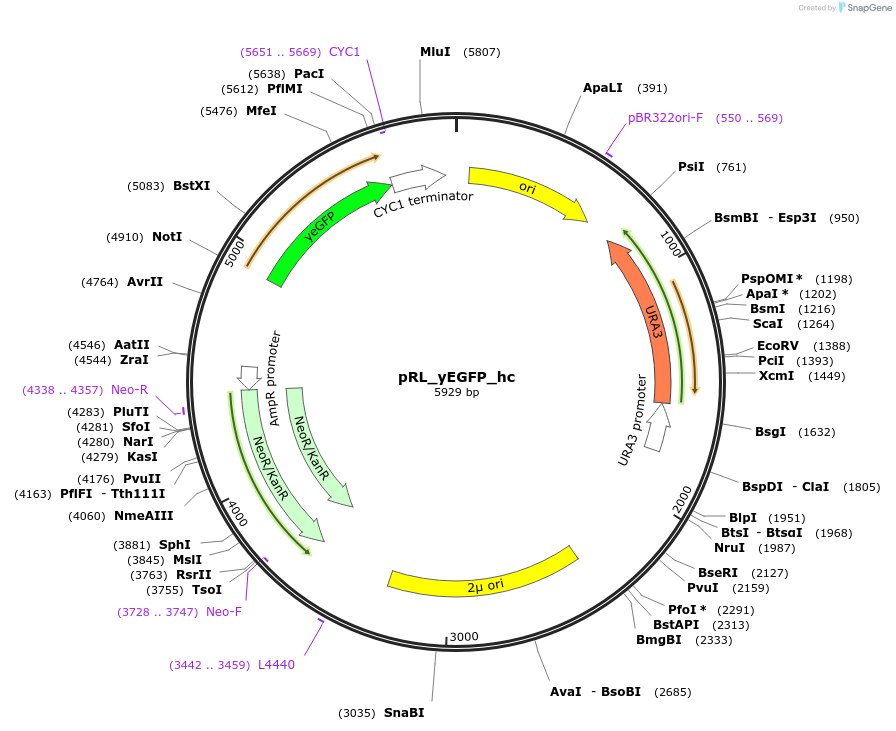

pRL_yEGFP_hc
(Plasmid #98746)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 98746 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pL0A_2-3
  • Backbone size w/o insert (bp) 4703
  • Total vector size (bp) 5929
  • Modifications to backbone
    Insertion of new homology regions A2 and A3
  • Vector type
    Yeast Expression, Synthetic Biology
  • Selectable markers
    URA3

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Yeast-enhanced green fluorescent protein
  • Alt name
    yEGFP
  • Insert Size (bp)
    717
  • Promoter synthetic

Cloning Information

  • Cloning method Gibson Cloning
  • 5′ sequencing primer CATTAGGTCCTTTGTAGC
  • 3′ sequencing primer GGGACCTAGACTTCAGGTTGTC
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pRL_yEGFP_hc was a gift from Bernd Müller-Röber (Addgene plasmid # 98746 ; http://n2t.net/addgene:98746 ; RRID:Addgene_98746)

  • For your References section:

    PhiReX: a programmable and red light-regulated protein expression switch for yeast. Hochrein L, Machens F, Messerschmidt K, Mueller-Roeber B. Nucleic Acids Res. 2017 Sep 6;45(15):9193-9205. doi: 10.1093/nar/gkx610. 10.1093/nar/gkx610 PubMed 28911120
