pDB4281
(Plasmid
#98700)
-
PurposeA Cas9-encoding plasmid containing the 5' portion of the bsdMX marker and the rrk1 promoter/leader. When linearized by NotI, it serves as the gapped vector in the split-bsdMX system
-
Depositing Lab
-

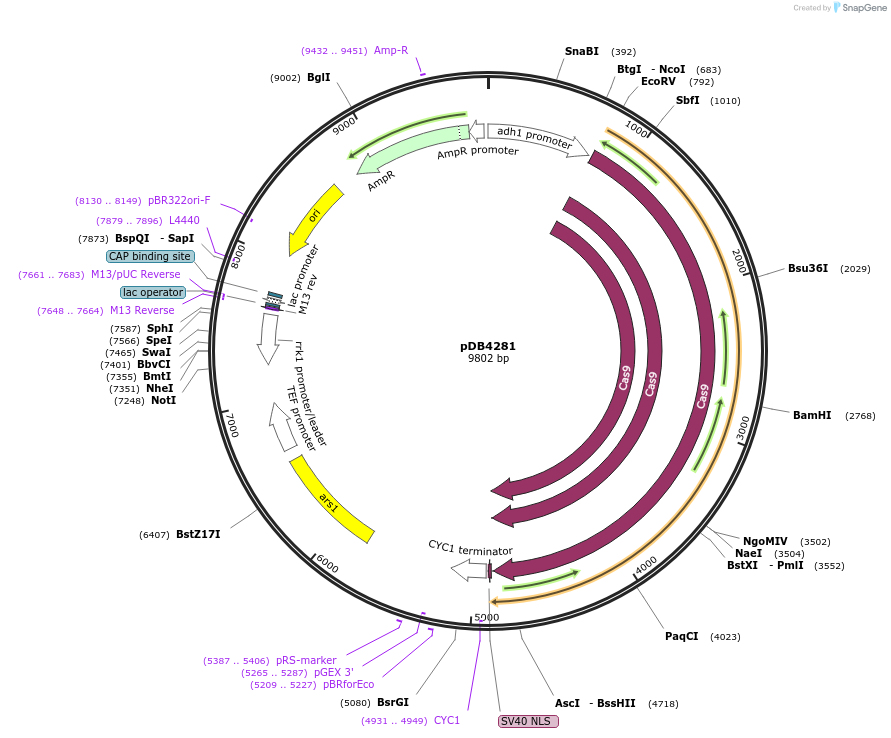

Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 98700 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepMZ374 (Addgene 59896)
-
Vector typeYeast Expression, CRISPR
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert nameCas9
Cloning Information
- Cloning method Unknown
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
These plasmids are used for a cloning-free method of CRISPR/Cas9-mediated genome editing in fission yeast. This method takes advantage of gap repair in fission yeast cells to assemble two linear DNA fragments, a gapped Cas9-encoding plasmid and a PCR-amplified gRNA insert, into a circular plasmid. To reduce non-specific gap repair background, we adopt a split-marker strategy. pDB4280 and pDB4282 serve as the source of the gapped plasmid and the PCR template for gRNA insert amplification, respectively, in the split-ura4 system. pDB4281 and pDB4283 serve the same purposes for the split-bsdMX system. pDB4279 is a transformation control for the split-bsdMX system.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pDB4281 was a gift from Li-Lin Du (Addgene plasmid # 98700 ; http://n2t.net/addgene:98700 ; RRID:Addgene_98700) -
For your References section:
A Cloning-Free Method for CRISPR/Cas9-Mediated Genome Editing in Fission Yeast. Zhang XR, He JB, Wang YZ, Du LL. G3 (Bethesda). 2018 Apr 27. pii: g3.118.200164. doi: 10.1534/g3.118.200164. 10.1534/g3.118.200164 PubMed 29703785
