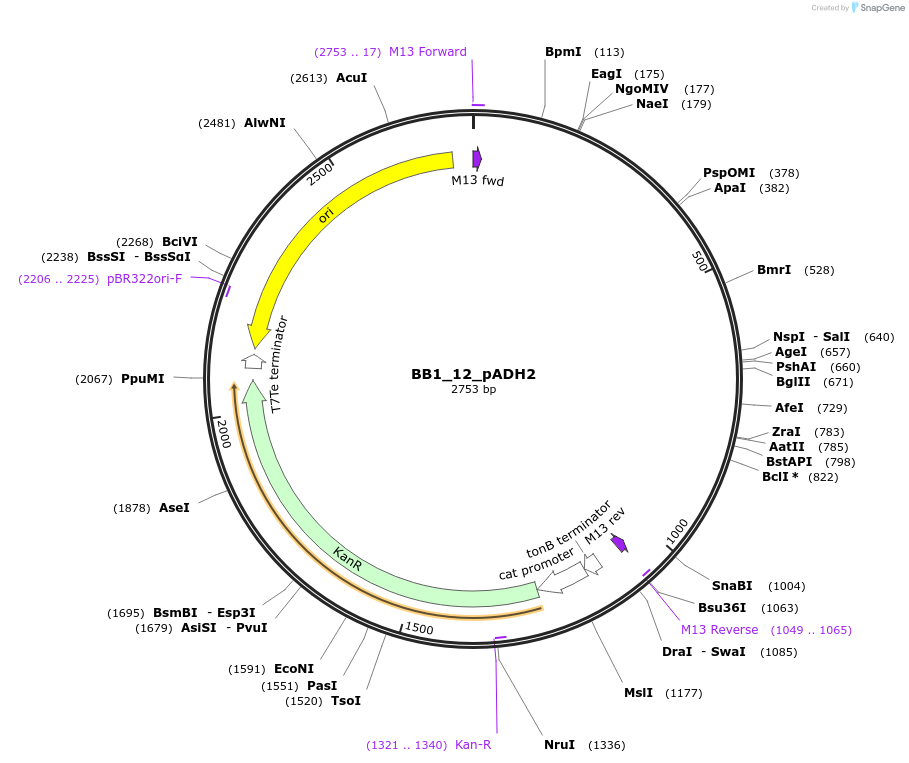

BB1_12_pADH2
(Plasmid #98504)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 98504 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    BB1
  • Backbone size w/o insert (bp) 1936
  • Vector type
    Bacterial Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH10B
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    ADH2 promoter
  • Insert Size (bp)
    820
  • Mutation
    Internal BsaI and BpiI sites removed from insert

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BpiI (destroyed during cloning)
  • 3′ cloning site BpiI (destroyed during cloning)
  • 5′ sequencing primer 5'-GTAAAACGACGGCCAGTT-3' (M13-Fwd)
  • 3′ sequencing primer 5´-CAGGAAACAGCTATGAC-3' (M13-Rev)
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    BB1_12_pADH2 was a gift from Brigitte Gasser & Diethard Mattanovich & Michael Sauer (Addgene plasmid # 98504 ; http://n2t.net/addgene:98504 ; RRID:Addgene_98504)

  • For your References section:

    GoldenPiCS: a Golden Gate-derived modular cloning system for applied synthetic biology in the yeast Pichia pastoris. Prielhofer R, Barrero JJ, Steuer S, Gassler T, Zahrl R, Baumann K, Sauer M, Mattanovich D, Gasser B, Marx H. BMC Syst Biol. 2017 Dec 8;11(1):123. doi: 10.1186/s12918-017-0492-3. 10.1186/s12918-017-0492-3 PubMed 29221460
