pYZ033
(Plasmid
#98404)
-
Purpose(Empty Backbone) Entry vector for S. pombe CRISPR-Cas9 system. The gRNA can be integrated easily through Gibson Assembly with the plasmid backbone digested by Not1
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 98404 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonepMZ374
- Backbone size (bp) 11358
-
Modifications to backboneCspCI placeholder was replaced with Not1 cutting site
-
Vector typeCRISPR, Synthetic Biology
-
Selectable markersSpura4
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer M13F
- 3′ sequencing primer M13R (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pYZ033 was a gift from Jef Boeke (Addgene plasmid # 98404 ; http://n2t.net/addgene:98404 ; RRID:Addgene_98404) -
For your References section:
Construction of Designer Selectable Marker Deletions with CRISPR-Cas9 Toolbox in Schizosaccharomyces pombe and Optimized Design of Common Entry Vectors. Zhao Y, Boeke JD. G3 (Bethesda). 2018 Jan 10. pii: g3.117.300363. doi: 10.1534/g3.117.300363. 10.1534/g3.117.300363 PubMed 29321167

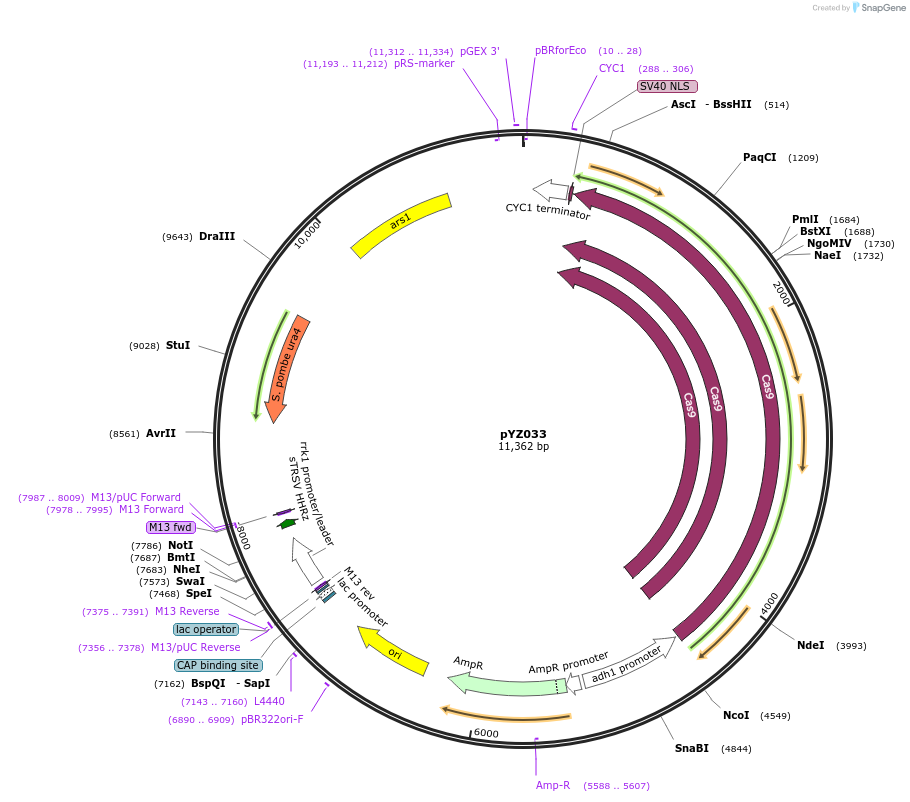

Map uploaded by the depositor.
