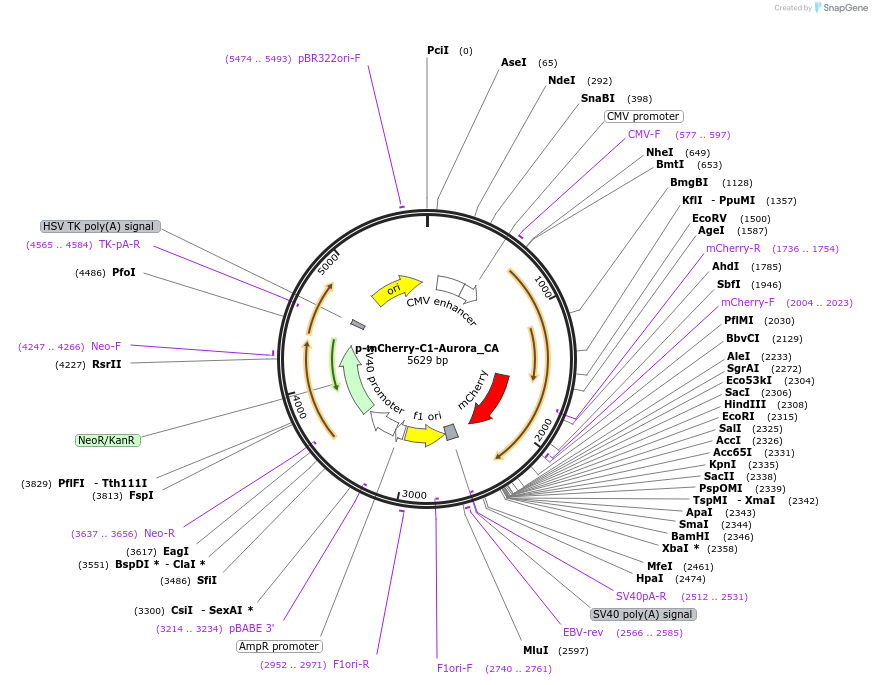

p-mCherry-C1-Aurora_CA
(Plasmid #98170)

• Purpose: slow cycling (open for minutes) step-function artificial anion conducting channelrhodopsin (aACR). High light sensitivity. Activation with green light, inactivation max with 625 nm (accelarates closure to ms). Not recommended for in vivo use. Codon optimized for mammalian expression.
• Depositing Lab: Peter Hegemann
• Publication: Wietek et al Sci Rep. 2017 Nov 2;7(1):14957. doi: 10.1038/s41598-017-14330-y.

Backbone

• Vector backbone: pEGFP-C1
• Backbone size w/o insert (bp): 4714
• Vector type: Mammalian Expression
• Selectable markers: Neomycin (select with G418)

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): XL1 Blue
• Copy number: High Copy

Gene/Insert

• Gene/Insert name: Synthetic construct Aurora_C128A gene
• Alt name: Aurora
• Alt name: ReaChR, bReachEs
• Species: Synthetic
• Insert Size (bp): 915
• Mutation: V59S, E83N, E90Q, E101S, V117R, E123S, C128A, P242R, A246N, N258Q, E273S
• Promoter: CMV (+enhancer)
• Tag / Fusion Protein:
  • mCherry (C terminal on backbone)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: NheI (not destroyed)
• 3′ cloning site: AgeI (not destroyed)
• 5′ sequencing primer: EGFP-N1-F: GAGGTCTATATAAGCAGAGC or CMV-F: GCAAATGGGCGGTAGGCGT
• 3′ sequencing primer: EGFP-C1-R: AACCATTATAAGCTGCAATAAAC

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
  • Takara Bio Limited Use Label License (formerly Clontech)
• Industry Terms:
  • Not Available to Industry
