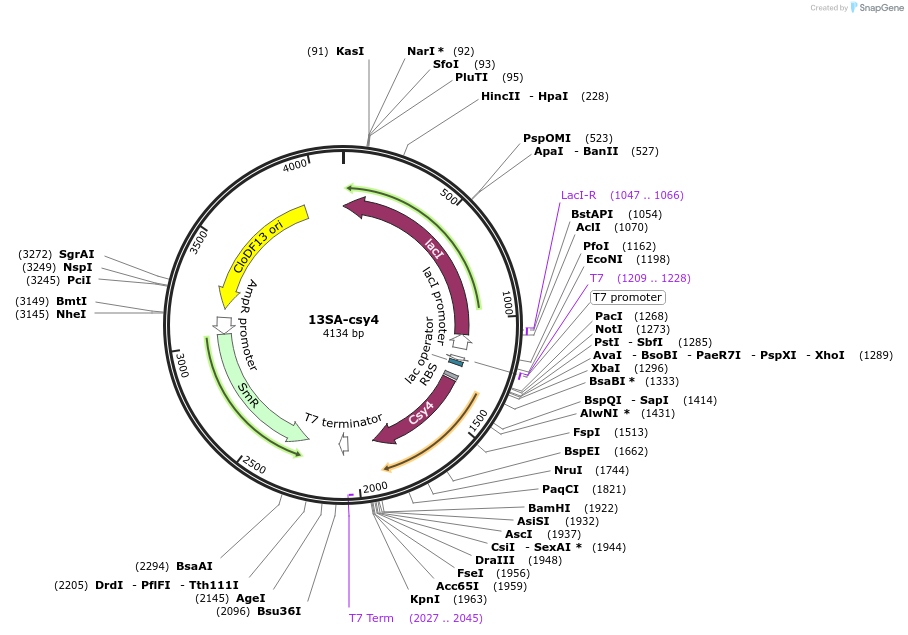

13SA-csy4
(Plasmid
#97037)
-
PurposeSpectinomycin resistant plasmid with a CDF origin that expresses Csy4 when IPTG induced, for coexpression with Series 371 vectors
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 97037 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepET co-transformation cloning vector (13S-A)
- Backbone size w/o insert (bp) 3566
- Total vector size (bp) 4135
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Spectinomycin, 50 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameCys4
-
SpeciesPseudomonas aeruginosa
-
Insert Size (bp)564
- Promoter T7
Cloning Information
- Cloning method Ligation Independent Cloning
- 5′ sequencing primer T7 Forward
- 3′ sequencing primer T7 Reverse (Common Sequencing Primers)
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
13SA-csy4 was a gift from Chris Jeans (Addgene plasmid # 97037 ; http://n2t.net/addgene:97037 ; RRID:Addgene_97037)
