FRB_T2098L-VAMP3-mCherry
(Plasmid #92429)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 92429 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

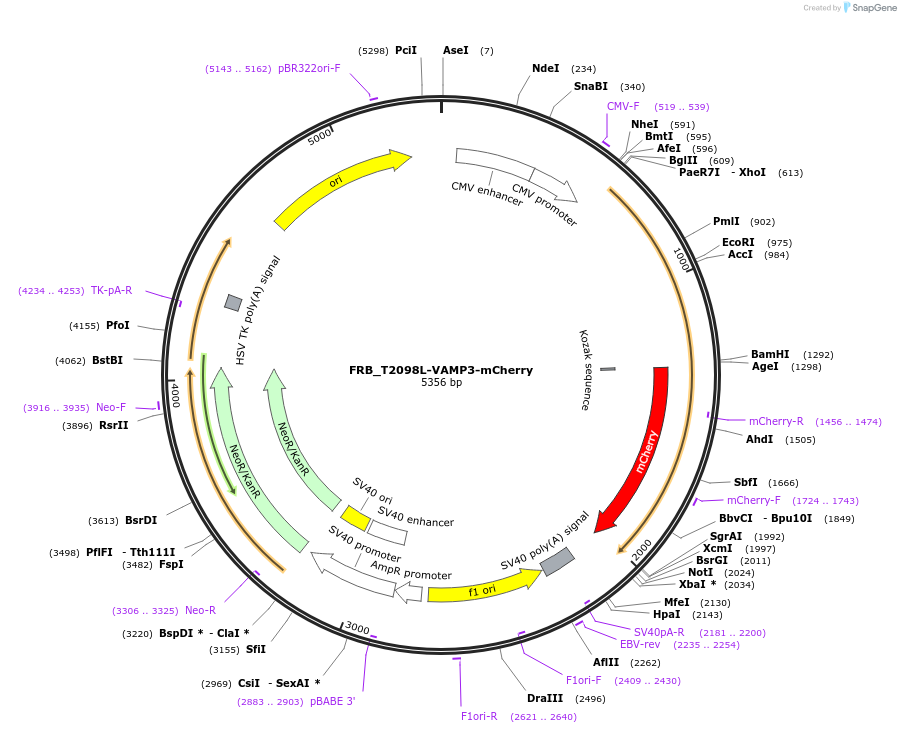

Backbone

  • Vector backbone
    pmCherry-N1
  • Backbone manufacturer
    CloneTech
  • Modifications to backbone
    none
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    VAMP3
  • Alt name
    VAMP3, cellubrevin
  • Species
    M. musculus (mouse)
  • GenBank ID
    NP_033524.1
  • Entrez Gene
    Vamp3 (a.k.a. D130027G05Rik, VAMP-3, ceb)
  • Promoter CMV
  • Tags / Fusion Proteins
    • mCherry (C terminal on insert)
    • FKBP rapamycin binding (FRB) domain of mTOR with mutation T2098L; allows for heterodimerization with FKBP by rapamycin analogue. (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site EcoRI (not destroyed)
  • 3′ cloning site BamHI (not destroyed)
  • 5′ sequencing primer TAACAACTCCGCCCCATT
  • 3′ sequencing primer CACCTTGAAGCGCATGAACT
    • (Common Sequencing Primers)

Terms and Licenses

Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    FRB_T2098L-VAMP3-mCherry was a gift from Geert van den Bogaart (Addgene plasmid # 92429 ; http://n2t.net/addgene:92429 ; RRID:Addgene_92429)

  • For your References section:

    Fluorescence lifetime imaging microscopy reveals rerouting of SNARE trafficking driving dendritic cell activation. Verboogen DRJ, Gonzalez Mancha N, Ter Beest M, van den Bogaart G. Elife. 2017 May 19;6. pii: e23525. doi: 10.7554/eLife.23525. 10.7554/eLife.23525 PubMed 28524818
