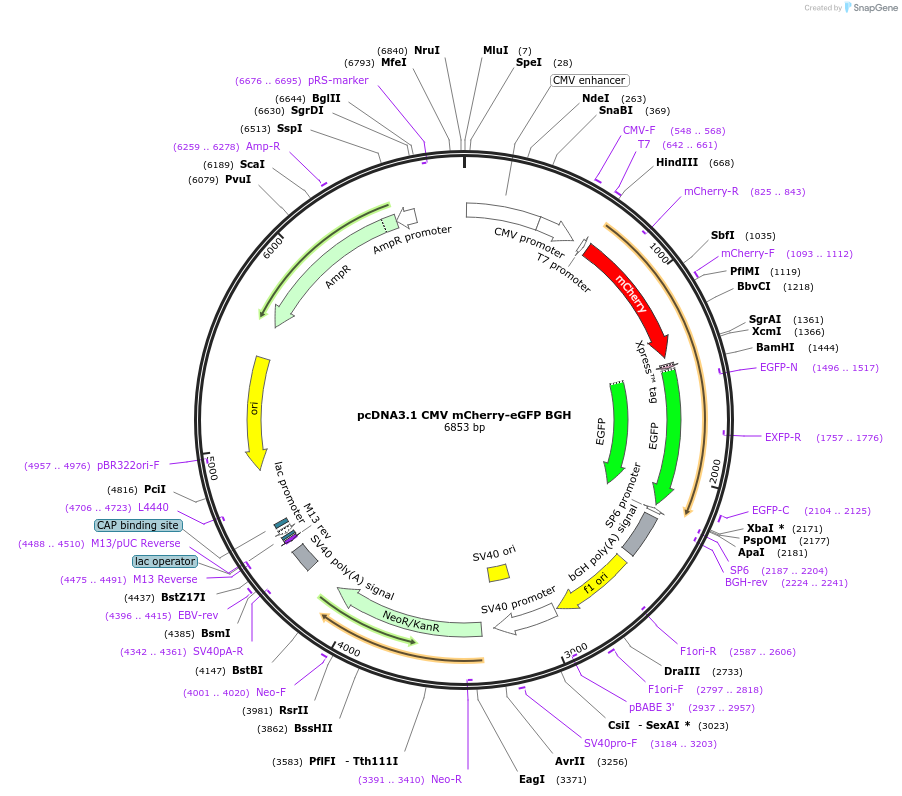

pcDNA3.1 CMV mCherry-eGFP BGH
(Plasmid
#92280)
-
PurposeControl FRET construct; tandem mCherry-eGFP fusion
-
Depositing Lab
-
Sequence Information
Ordering
Item | Catalog # | Description | Quantity | Price (USD) | |
---|---|---|---|---|---|
Plasmid | 92280 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 |
Backbone
-
Vector backbonepcDNA3.1
-
Backbone manufacturerInvitrogen
-
Vector typeMammalian Expression
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)DH5alpha
-
Copy numberHigh Copy
Gene/Insert
-
Gene/Insert namemCherry-eGFP
-
SpeciesSynthetic
-
Insert Size (bp)1485
- Promoter CMV
Cloning Information
- Cloning method Gibson Cloning
- 5′ sequencing primer GAGAACCCACTGCTTACTGGC
- 3′ sequencing primer TAGAAGGCACAGTCGAGG (Common Sequencing Primers)
Resource Information
-
Article Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pcDNA3.1 CMV mCherry-eGFP BGH was a gift from Baljit Khakh (Addgene plasmid # 92280 ; http://n2t.net/addgene:92280 ; RRID:Addgene_92280) -
For your References section:
An Optical Neuron-Astrocyte Proximity Assay at Synaptic Distance Scales. Octeau JC, Chai H, Jiang R, Bonanno SL, Martin KC, Khakh BS. Neuron. 2018 Apr 4;98(1):49-66.e9. doi: 10.1016/j.neuron.2018.03.003. 10.1016/j.neuron.2018.03.003 PubMed 29621490
