Purpose(Empty Backbone) Modified version of lentiSAM v2, a lenti sgRNA cloning backbone with MS2 loops at tetraloop/stemloop 2, dCas9-VP64, and puro resistance marker. Contains BsmBI sites for insertion of spacer sequences.
-
Depositing Lab
-
Sequence Information
Ordering
This material is available to academics and nonprofits only.
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 92062 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 | |
Backbone
-
Vector backbonelentiSAM v2
-
Backbone manufacturerFeng Zhang lab
- Backbone size (bp) 13713
-
Modifications to backboneT2A-blasticidin was removed by digestion with Bsp1407I and EcoRI. P2A-puromycin was added by PCR amplification from lentiCRISP v2 then ligation into these restriction sites.
-
Vector typeMammalian Expression, Lentiviral, CRISPR
- Promoter U6 (sgRNA) and EF1a (dCas9-VP64)
-
Selectable markersPuromycin
Growth in Bacteria
-
Bacterial Resistance(s)Ampicillin, 100 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberHigh Copy
Cloning Information
- Cloning method Restriction Enzyme
Resource Information
-
Articles Citing this Plasmid
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
- Not Available to Industry
Trademarks:
- Zeocin® is an InvivoGen trademark.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
lentiSAM v2 (Puro) was a gift from Adam Karpf (Addgene plasmid # 92062 ; http://n2t.net/addgene:92062 ; RRID:Addgene_92062) -
For your References section:
Co-regulation and function of FOXM1/RHNO1 bidirectional genes in cancer. Barger CJ, Chee L, Albahrani M, Munoz-Trujillo C, Boghean L, Branick C, Odunsi K, Drapkin R, Zou L, Karpf AR. Elife. 2021 Apr 23;10. pii: 55070. doi: 10.7554/eLife.55070. 10.7554/eLife.55070 PubMed 33890574

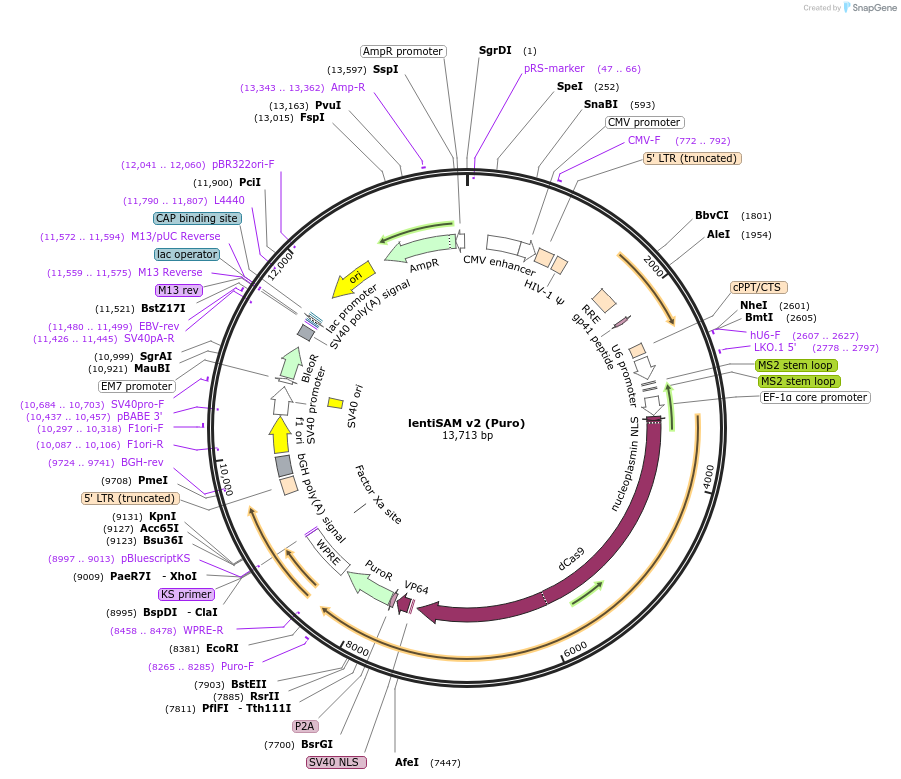

Map uploaded by the depositor.
