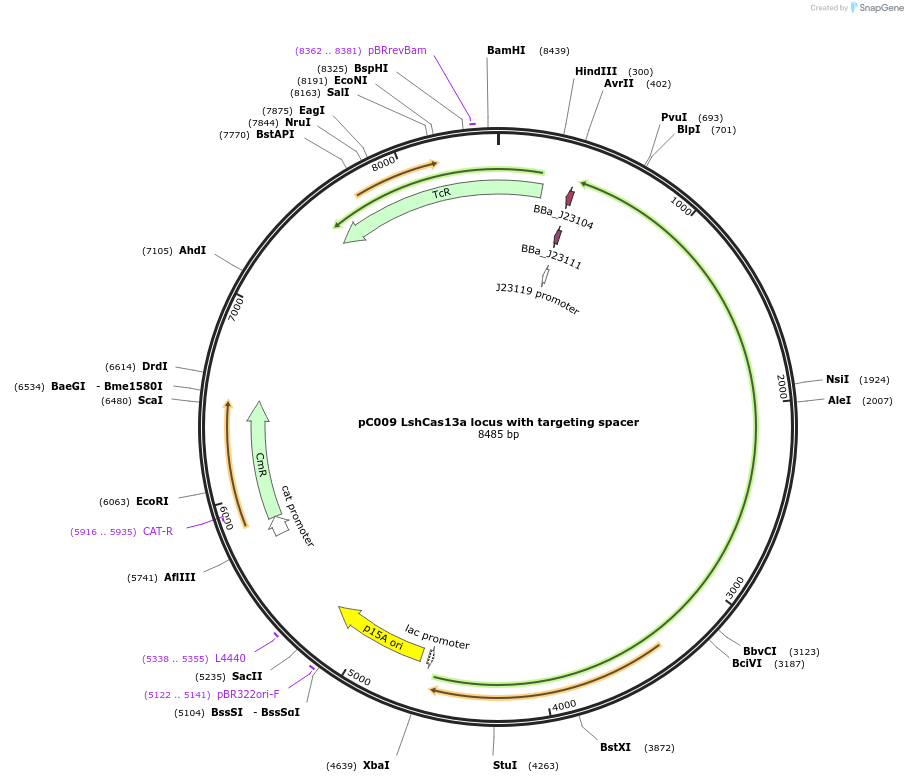

pC009 LshCas13a locus with targeting spacer
(Plasmid
#91900)
-
PurposeLshCas13a locus into pACYC184 with targeting spacer
-
Depositing Lab
-
Sequence Information
Ordering
| Item | Catalog # | Description | Quantity | Price (USD) | |
|---|---|---|---|---|---|
| Plasmid | 91900 | Standard format: Plasmid sent in bacteria as agar stab | 1 | $85 * | |
* Log in to view industry pricing.
Backbone
-
Vector backbonepACYC184
- Backbone size w/o insert (bp) 4153
- Total vector size (bp) 8486
-
Vector typeBacterial Expression
Growth in Bacteria
-
Bacterial Resistance(s)Chloramphenicol, 25 μg/mL
-
Growth Temperature37°C
-
Growth Strain(s)NEB Stable
-
Copy numberLow Copy
Gene/Insert
-
Gene/Insert nameLshCas13a locus with targeting spacer
-
Speciesleptotrichia shahii
-
Insert Size (bp)4333
Resource Information
-
Supplemental Documents
Terms and Licenses
-
Academic/Nonprofit Terms
-
Industry Terms
Trademarks:
- Zeocin® is an InvivoGen trademark.
Depositor Comments
Note: Addgene's quality control sequencing identified an R820W amino acid residue substitution in the LshCas13a insert. This residue change is not thought to affect plasmid function.
How to cite this plasmid
( Back to top)
These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.
-
For your Materials & Methods section:
pC009 LshCas13a locus with targeting spacer was a gift from Feng Zhang (Addgene plasmid # 91900 ; http://n2t.net/addgene:91900 ; RRID:Addgene_91900) -
For your References section:
Nucleic acid detection with CRISPR-Cas13a/C2c2. Gootenberg JS, Abudayyeh OO, Lee JW, Essletzbichler P, Dy AJ, Joung J, Verdine V, Donghia N, Daringer NM, Freije CA, Myhrvold C, Bhattacharyya RP, Livny J, Regev A, Koonin EV, Hung DT, Sabeti PC, Collins JJ, Zhang F. Science. 2017 Apr 13. pii: eaam9321. doi: 10.1126/science.aam9321. 10.1126/science.aam9321 PubMed 28408723
