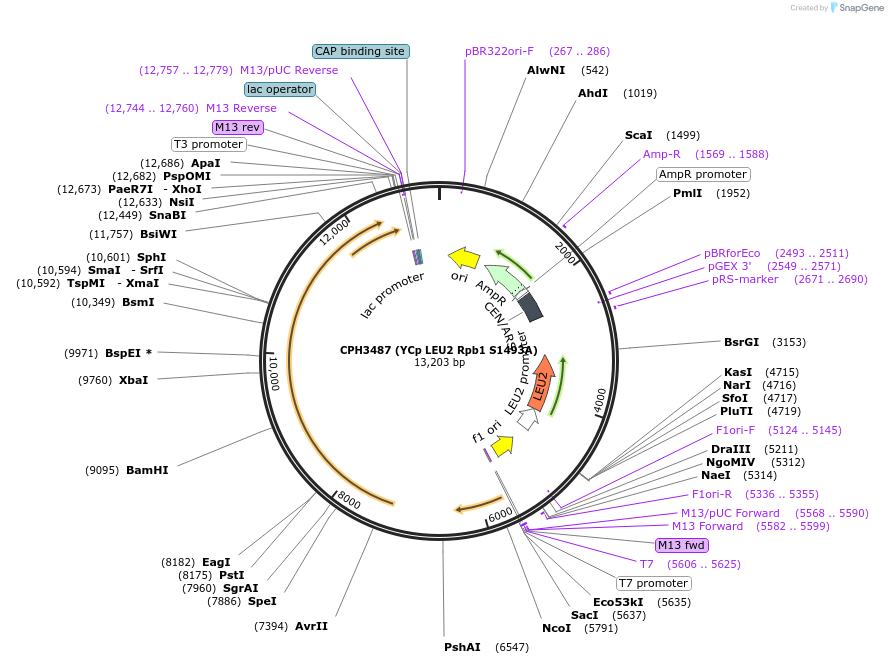

CPH3487 (YCp LEU2 Rpb1 S1493A)
(Plasmid #91809)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 91809 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pRS315
  • Backbone manufacturer
    ATCC
  • Backbone size w/o insert (bp) 7771
  • Total vector size (bp) 12970
  • Modifications to backbone
    Addition of endogenous RPB1 promoter and 3’ untranslated regions
  • Vector type
    Yeast Expression
  • Selectable markers
    LEU2

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Low Copy

Gene/Insert

  • Gene/Insert name
    RPO21
  • Alt name
    RPB1, RPB220, SUA8, B220
  • Species
    S. cerevisiae (budding yeast)
  • Insert Size (bp)
    5199
  • Mutation
    changed serine 1493 to alanine
  • GenBank ID
    NM_001180200.1
  • Entrez Gene
    RPO21 (a.k.a. YDL140C, RPB1, RPB220, SIT1, SUA8)
  • Promoter Endogenous Rpb1 promoter

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site Sph1 (not destroyed)
  • 3′ cloning site Xho1 (not destroyed)
  • 5′ sequencing primer CTGTTTCCAACACCCAT
  • 3′ sequencing primer M13R
    • (Common Sequencing Primers)

Resource Information

  • Supplemental Documents
  • A portion of this plasmid was derived from a plasmid made by
    This plasmid was derived from pCK859, a gift from Craig Kaplan at Texas A&M University.

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    CPH3487 (YCp LEU2 Rpb1 S1493A) was a gift from Chris Hill (Addgene plasmid # 91809 ; http://n2t.net/addgene:91809 ; RRID:Addgene_91809)

  • For your References section:

    A novel SH2 recognition mechanism recruits Spt6 to the doubly phosphorylated RNA polymerase II linker at sites of transcription. Sdano MA, Fulcher JM, Palani S, Chandrasekharan MB, Parnell TJ, Whitby FG, Formosa T, Hill CP. Elife. 2017 Aug 16;6. pii: 28723. doi: 10.7554/eLife.28723. 10.7554/eLife.28723 PubMed 28826505
