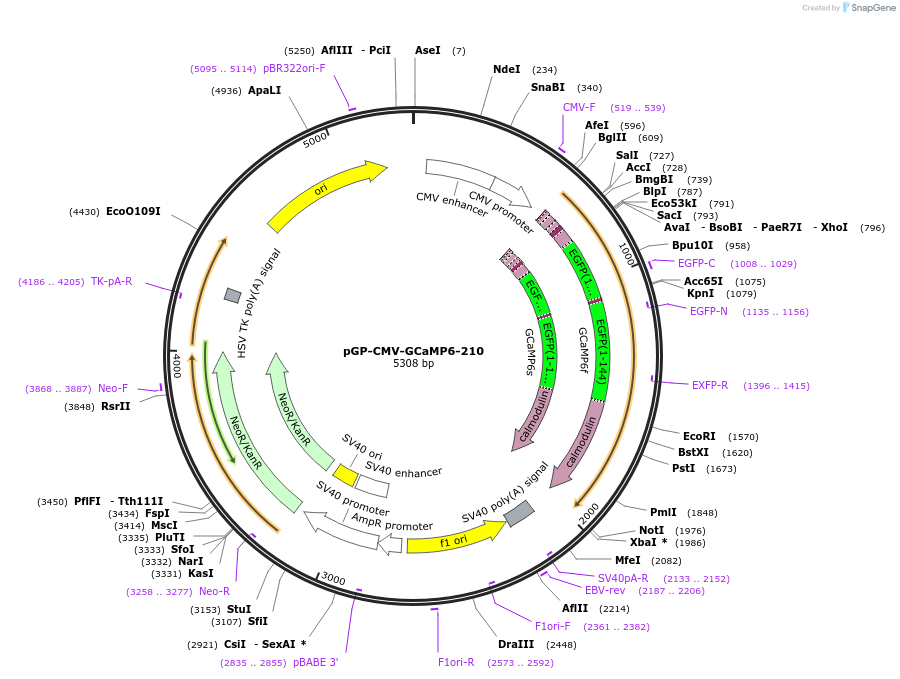

pGP-CMV-GCaMP6-210
(Plasmid #91778)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 91778 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pEGFP-N1
  • Backbone manufacturer
    Clontech
  • Backbone size w/o insert (bp) 3955
  • Total vector size (bp) 5308
  • Vector type
    Mammalian Expression
  • Selectable markers
    Neomycin (select with G418)

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    GCaMP6-210
  • Alt name
    GCaMP3-K78H T302L R303P A317E D324G D360G D380Y T381R S383T R392G D397G
  • Alt name
    GCaMP3 variant 5.717
  • Species
    R. norvegicus (rat), G. gallus (chicken); A. victoria
  • Insert Size (bp)
    1353
  • Promoter CMV
  • Tags / Fusion Proteins
    • 6xHis (N terminal on insert)
    • T7 epitope (N terminal on insert)
    • Xpress tag (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BglII (not destroyed)
  • 3′ cloning site NotI (not destroyed)
  • 5′ sequencing primer CMV Forward
  • 3′ sequencing primer SV40pA-R
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pGP-CMV-GCaMP6-210 was a gift from Douglas Kim & GENIE Project (Addgene plasmid # 91778 ; http://n2t.net/addgene:91778 ; RRID:Addgene_91778)

  • For your References section:

    Axonal Endoplasmic Reticulum Ca2+ Content Controls Release Probability in CNS Nerve Terminals. de Juan-Sanz J, Holt GT, Schreiter ER, de Juan F, Kim DS, Ryan TA. Neuron. 2017 Jan 30. pii: S0896-6273(17)30034-X. doi: 10.1016/j.neuron.2017.01.010. 10.1016/j.neuron.2017.01.010 PubMed 28162809
