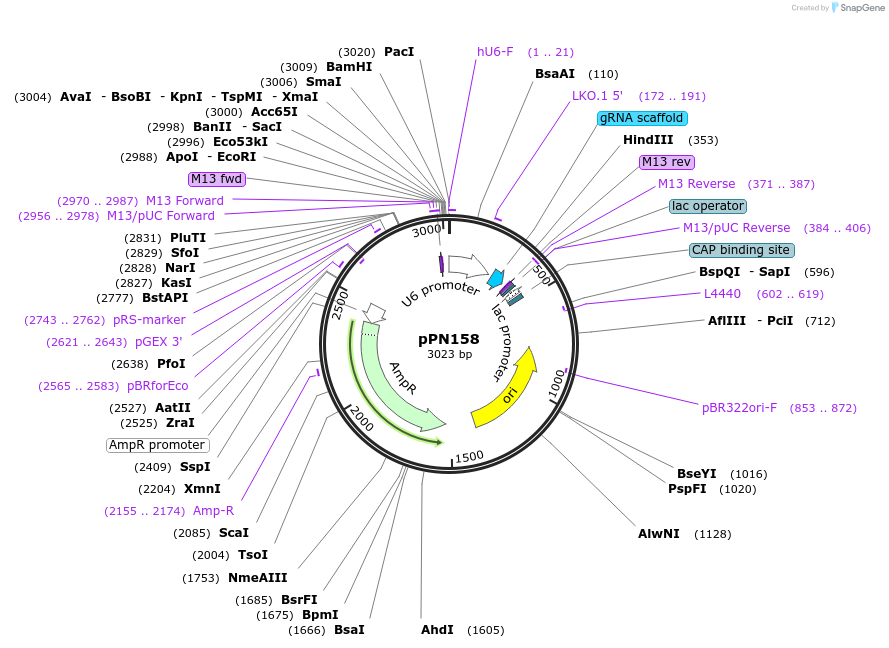

pPN158
(Plasmid #91687)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 91687 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pUC19-U6 promoter
  • Vector type
    CRISPR

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    ZSWIM6
  • Alt name
    NM_020928.1
  • gRNA/shRNA sequence
    CTGTCACTGTGCCGCTCAAG
  • Species
    H. sapiens (human)
  • Insert Size (bp)
    21
  • Entrez Gene
    ZSWIM6 (a.k.a. KIAA1577, DKFZp779P0344)
  • Promoter U6

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site BbsI (destroyed during cloning)
  • 3′ cloning site BbsI (destroyed during cloning)
  • 5′ sequencing primer M13F (-21)
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pPN158 was a gift from Lindy Barrett (Addgene plasmid # 91687 ; http://n2t.net/addgene:91687 ; RRID:Addgene_91687)

  • For your References section:

    A Scaled Framework for CRISPR Editing of Human Pluripotent Stem Cells to Study Psychiatric Disease. Hazelbaker DZ, Beccard A, Bara AM, Dabkowski N, Messana A, Mazzucato P, Lam D, Manning D, Eggan K, Barrett LE. Stem Cell Reports. 2017 Oct 10;9(4):1315-1327. doi: 10.1016/j.stemcr.2017.09.006. 10.1016/j.stemcr.2017.09.006 PubMed 29020615
