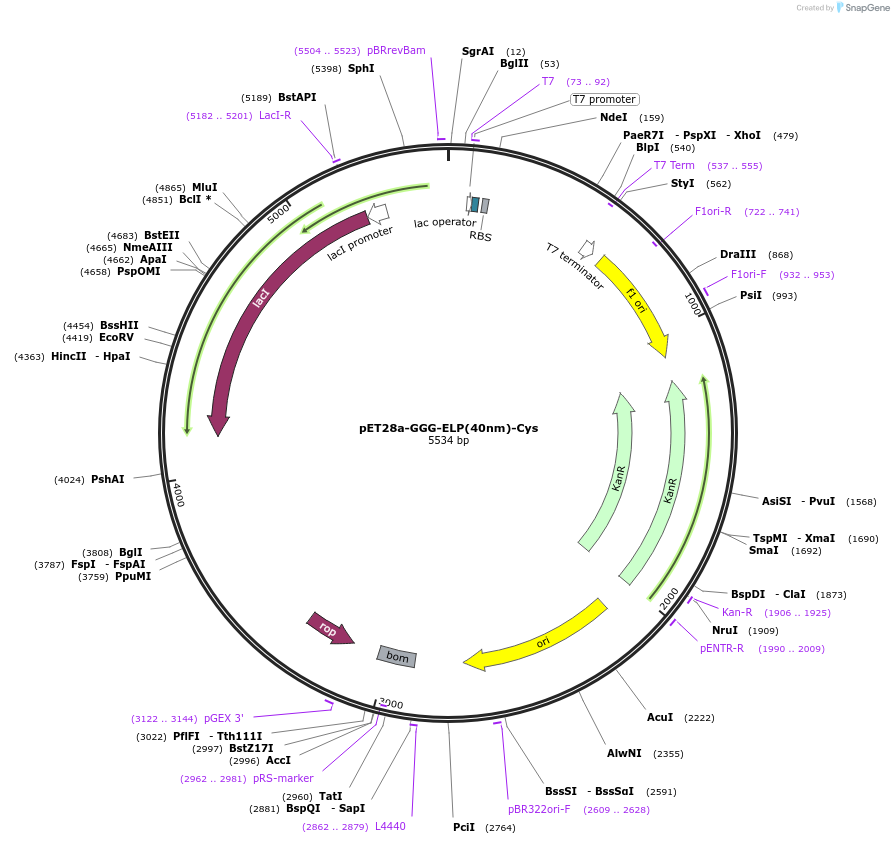

pET28a-GGG-ELP(40nm)-Cys
(Plasmid #91571)

• Purpose: Elastin Like Polypeptide: [(VPGEG)-(VPGVG)4-(VPGAG)2-(VPGGG)2-(VPGEG)]2, with N-Terminal Sortase Recognition Sequence GGG and a C-terminal Cysteine
• Depositing Lab: Hermann Gaub
• Publication: Ott et al ACS Nano. 2017 Jun 12. doi: 10.1021/acsnano.7b02694.

Backbone

• Vector backbone: pET28a
• Backbone manufacturer: Novagen
• Backbone size w/o insert (bp): 5219
• Total vector size (bp): 5534
• Vector type: Bacterial Expression

Growth in Bacteria

• Bacterial Resistance(s): Kanamycin, 50 μg/mL
• Growth Temperature: 37°C
• Growth Strain(s): DH5alpha
• Growth instructions: For protein production transformed NiCo21(DE3) strains in auto induction media (supplemented with 5 mg/ml proline, valine and 10 mg/ml glycin) were grown for 24 hrs (6 hrs 37°C, 18 hrs 25°C).
• Copy number: Low Copy

Gene/Insert

• Gene/Insert name: GGG-ELP(40nm)-Cys
• Alt name: Elastin like polypeptide
• Species: Synthetic
• Insert Size (bp): 315
• Promoter: T7
• Tags / Fusion Proteins:
  • Sortase-Tag (N terminal on insert)
  • Cysteine (C terminal on insert)

Cloning Information

• Cloning method: Restriction Enzyme
• 5′ cloning site: BsaI-HF (destroyed during cloning)
• 3′ cloning site: BsaI-HF (destroyed during cloning)
• 5′ sequencing primer: CCGATCTTCCCCATCGGT
• 3′ sequencing primer: CTAGTTATTGCTCAGCGGT

Terms and Licenses

• Academic/Nonprofit Terms:
  • UBMTA
• Industry Terms:
  • Not Available to Industry

Depositor Comments

The underlying cloning procedure of the employed ELP genes is described in this article:
Ott, W.; Nicolaus, T.; Gaub, H. E.; Nash, M. A. Sequence-Independent Cloning and Post-Translational Modification of Repetitive Protein Polymers through Sortase and Sfp-Mediated Enzymatic Ligation. Biomacromolecules 2016, 17, 1330−1338.
