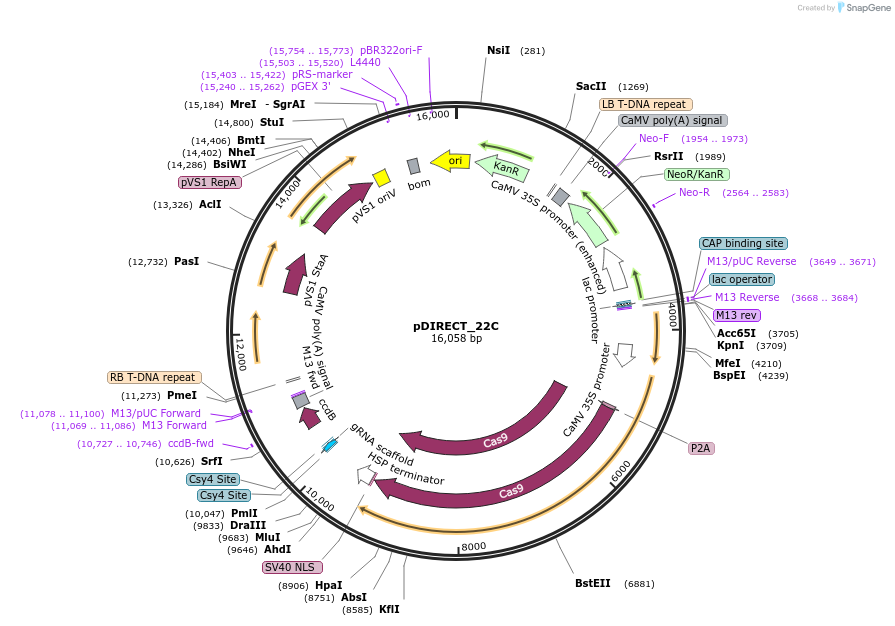

pDIRECT_22C
(Plasmid #91135)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 91135 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pTRANS_220d
  • Vector type
    Plant Expression, CRISPR
  • Selectable markers
    Kanamycin

Growth in Bacteria

  • Bacterial Resistance(s)
    Kanamycin, 50 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    ccdB Survival
  • Copy number
    High Copy

Gene/Insert

  • Gene/Insert name
    Engineering Reagent: 35S:Csy4-P2A-AtCas9 + CmYLCV:gRNAs with Csy4 spacers
  • Species
    Synthetic

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site unknown (unknown if destroyed)
  • 3′ cloning site unknown (unknown if destroyed)
  • 5′ sequencing primer unknown
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pDIRECT_22C was a gift from Daniel Voytas (Addgene plasmid # 91135 ; http://n2t.net/addgene:91135 ; RRID:Addgene_91135)

  • For your References section:

    A multi-purpose toolkit to enable advanced genome engineering in plants. Cermak T, Curtin SJ, Gil-Humanes J, Cegan R, Kono TJY, Konecna E, Belanto JJ, Starker CG, Mathre JW, Greenstein RL, Voytas DF. Plant Cell. 2017 May 18. pii: tpc.00922.2016. doi: 10.1105/tpc.16.00922. 10.1105/tpc.16.00922 PubMed 28522548
