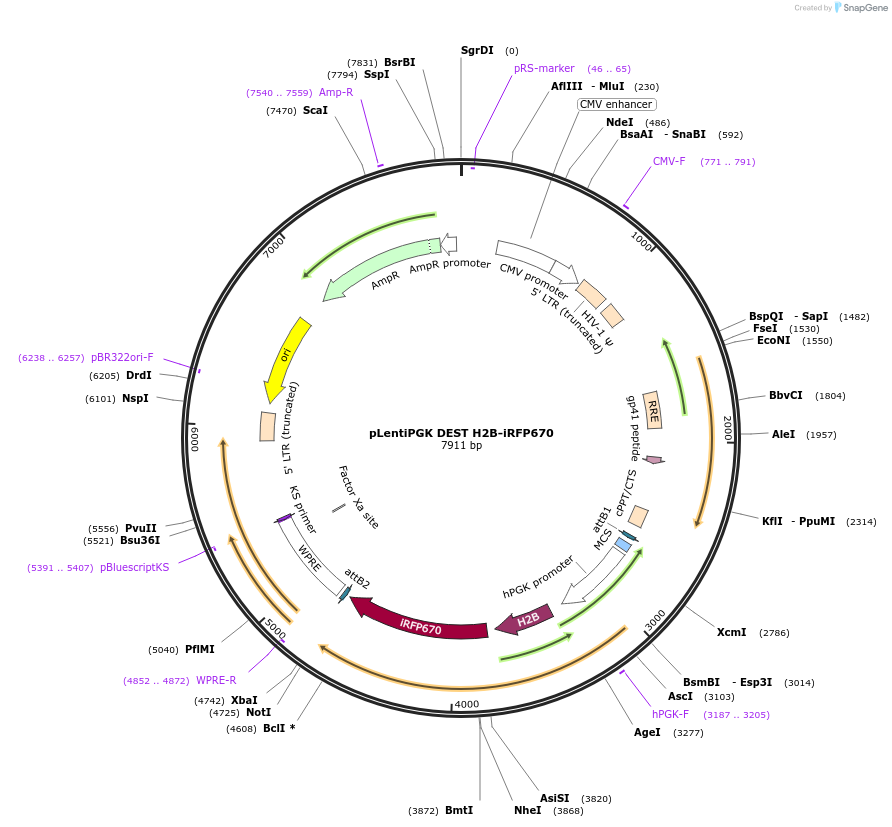

pLentiPGK DEST H2B-iRFP670
(Plasmid #90237)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 90237 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

Backbone

  • Vector backbone
    pLENTI PGK DEST
  • Vector type
    Mammalian Expression, Lentiviral

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    30°C
  • Growth Strain(s)
    NEB Stable
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    H2B
  • Species
    H. sapiens (human)
  • Promoter PGK
  • Tag / Fusion Protein
    • iRFP670 (C terminal on insert)

Cloning Information

  • Cloning method Gateway Cloning
  • 5′ sequencing primer ACCGAATCACCGACCTCTCT
  • 3′ sequencing primer GCAGCGTATCCACATAGCG
    • (Common Sequencing Primers)

Resource Information

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    pLentiPGK DEST H2B-iRFP670 was a gift from Markus Covert (Addgene plasmid # 90237 ; http://n2t.net/addgene:90237 ; RRID:Addgene_90237)

  • For your References section:

    Live-cell measurements of kinase activity in single cells using translocation reporters. Kudo T, Jeknic S, Macklin DN, Akhter S, Hughey JJ, Regot S, Covert MW. Nat Protoc. 2018 Jan;13(1):155-169. doi: 10.1038/nprot.2017.128. Epub 2017 Dec 21. 10.1038/nprot.2017.128 PubMed 29266096
