LP451
(Plasmid #90183)

Print

Ordering

This material is available to academics and nonprofits only.
Item Catalog # Description Quantity Price (USD)
Plasmid 90183 Standard format: Plasmid sent in bacteria as agar stab 1 $85
Add to Cart

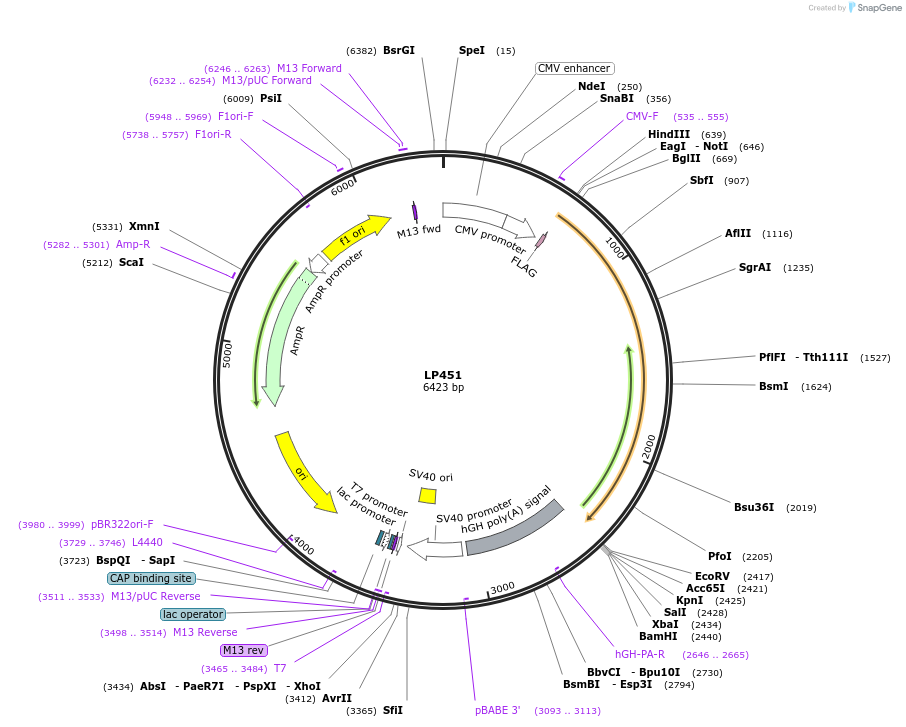

Backbone

  • Vector backbone
    pFLAG-CMV2
  • Backbone manufacturer
    Sigma-Aldrich
  • Backbone size w/o insert (bp) 4679
  • Total vector size (bp) 6434
  • Modifications to backbone
    None
  • Vector type
    Mammalian Expression

Growth in Bacteria

  • Bacterial Resistance(s)
    Ampicillin, 100 μg/mL
  • Growth Temperature
    37°C
  • Growth Strain(s)
    DH5alpha
  • Copy number
    Unknown

Gene/Insert

  • Gene/Insert name
    NPHP4
  • Species
    H. sapiens (human)
  • Mutation
    aa residues 841-1426
  • GenBank ID
    XM_006710563.3
  • Entrez Gene
    NPHP4 (a.k.a. POC10, SLSN4)
  • Promoter CMV
  • Tag / Fusion Protein
    • FLAG (N terminal on insert)

Cloning Information

  • Cloning method Restriction Enzyme
  • 5′ cloning site NotI (not destroyed)
  • 3′ cloning site EcoRV (not destroyed)
  • 5′ sequencing primer CMV-F: CGCAAATGGGCGGTAGGCGTG
  • 3′ sequencing primer hGH-PA-R: CCAGCTTGGTTCCCAATAGA
    • (Common Sequencing Primers)

Terms and Licenses

  • Academic/Nonprofit Terms
  • Industry Terms
    • Not Available to Industry
Trademarks:
  • Zeocin® is an InvivoGen trademark.
How to cite this plasmid ( Back to top)

These plasmids were created by your colleagues. Please acknowledge the Principal Investigator, cite the article in which the plasmids were described, and include Addgene in the Materials and Methods of your future publications.

  • For your Materials & Methods section:

    LP451 was a gift from Lotte Pedersen (Addgene plasmid # 90183 ; http://n2t.net/addgene:90183 ; RRID:Addgene_90183)

  • For your References section:

    KIF13B establishes a CAV1-enriched microdomain at the ciliary transition zone to promote Sonic hedgehog signalling. Schou KB, Mogensen JB, Morthorst SK, Nielsen BS, Aleliunaite A, Serra-Marques A, Furstenberg N, Saunier S, Bizet AA, Veland IR, Akhmanova A, Christensen ST, Pedersen LB. Nat Commun. 2017 Jan 30;8:14177. doi: 10.1038/ncomms14177. 10.1038/ncomms14177 PubMed 28134340
